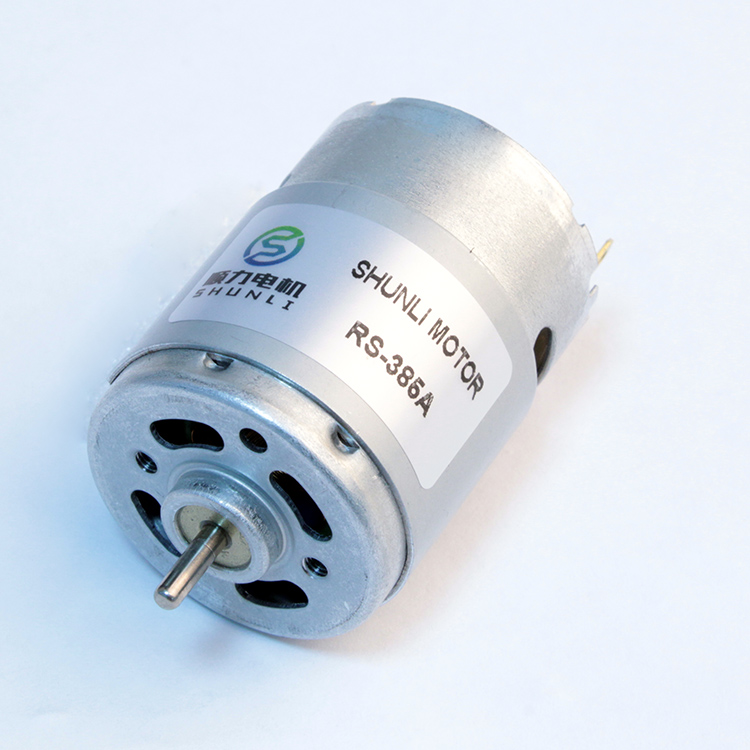

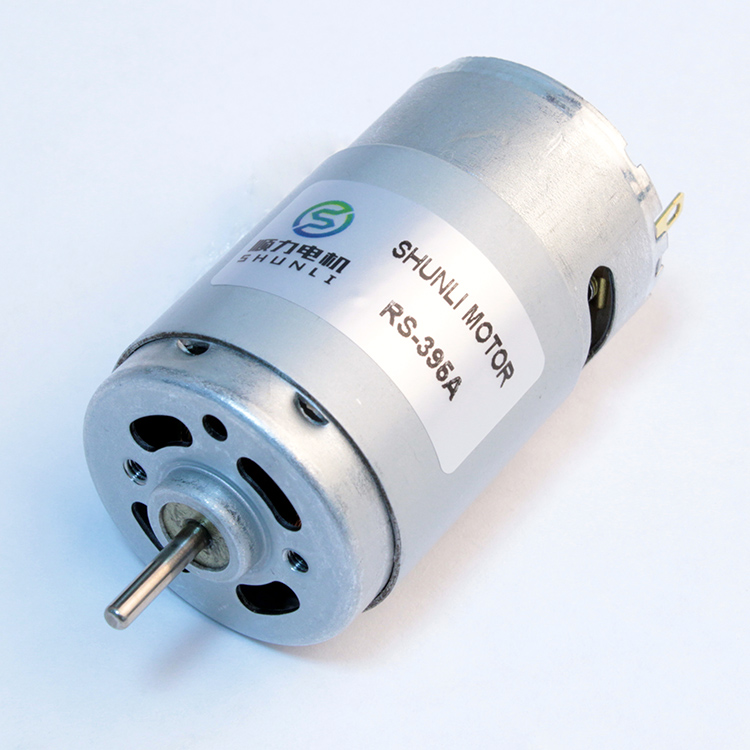

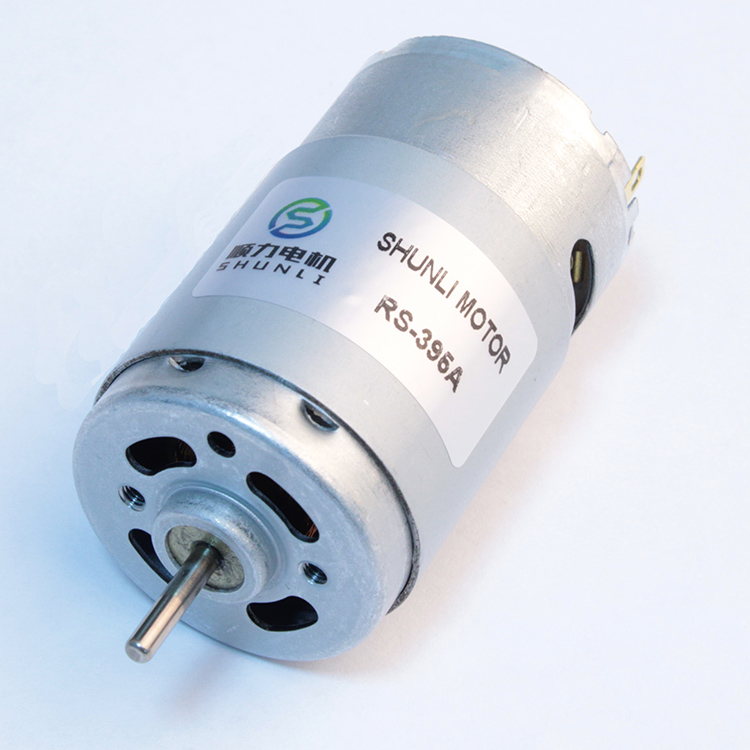

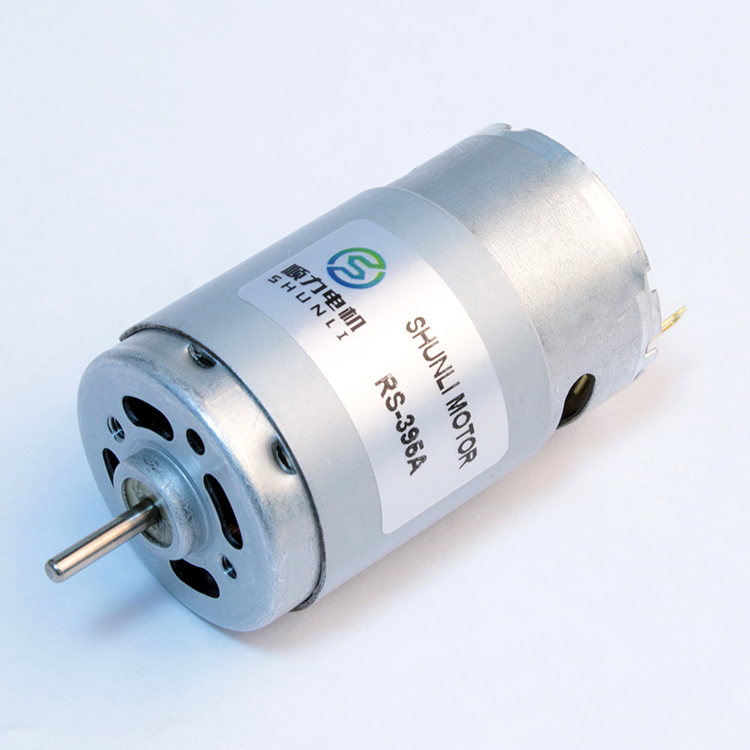

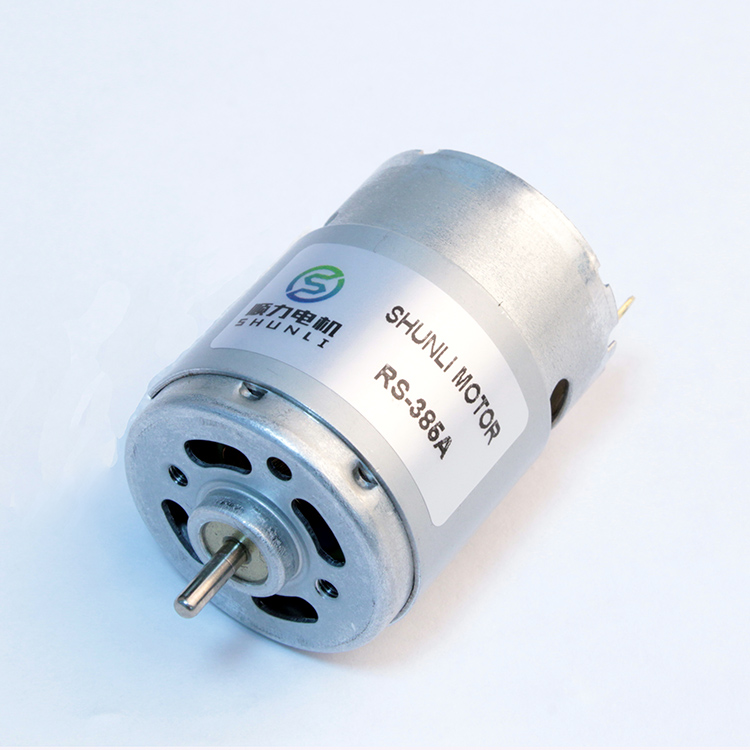

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

1 / 5

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

ℹ Product Details

★ Motor Customized Specification, Please contact me.

Reference Drawing

------ RS - 365

------ RS - 385

------ RS - 395

★ The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Recommend Product

Contact Us

✉ Looking forward to your feedback!

Frequently Asked Questions

QWhat is the main application of the RS-380 and RS-385 micro DC motors?

These micro DC motors are widely used in high-speed and large torque applications such as electric drills, garden tools, and various toy models.

QCan the shaft length of these micro motors be customized?

Yes, the shaft length as well as other motor specifications can be fully customized based on your specific requirements.

QWhat is the operating voltage range for these motors?

The typical operating voltage range ranges from 12V to 24V DC, depending on the specific model and your project needs.

QWhat are the standard RPM capabilities for the RS-390 and RS-395 models?

Depending on the specific configuration and voltage, speed ranges from 3,650 RPM up to 12,000 RPM as shown in our reference datasheet.

QHow can I request customized electrical parameters?

You can contact us with your required voltage, speed, current, torque, and dimension constraints, and we will customize the performance curve for your application.

QDo these motors offer stable torque under load conditions?

Yes, these PMDC motors are specifically engineered to provide consistent power, high torque output, and reliable operation under nominal load parameters.
