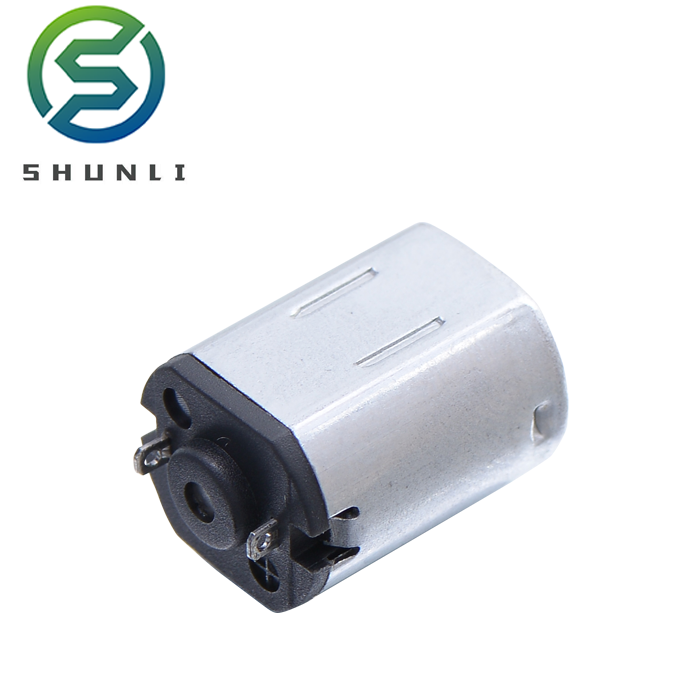

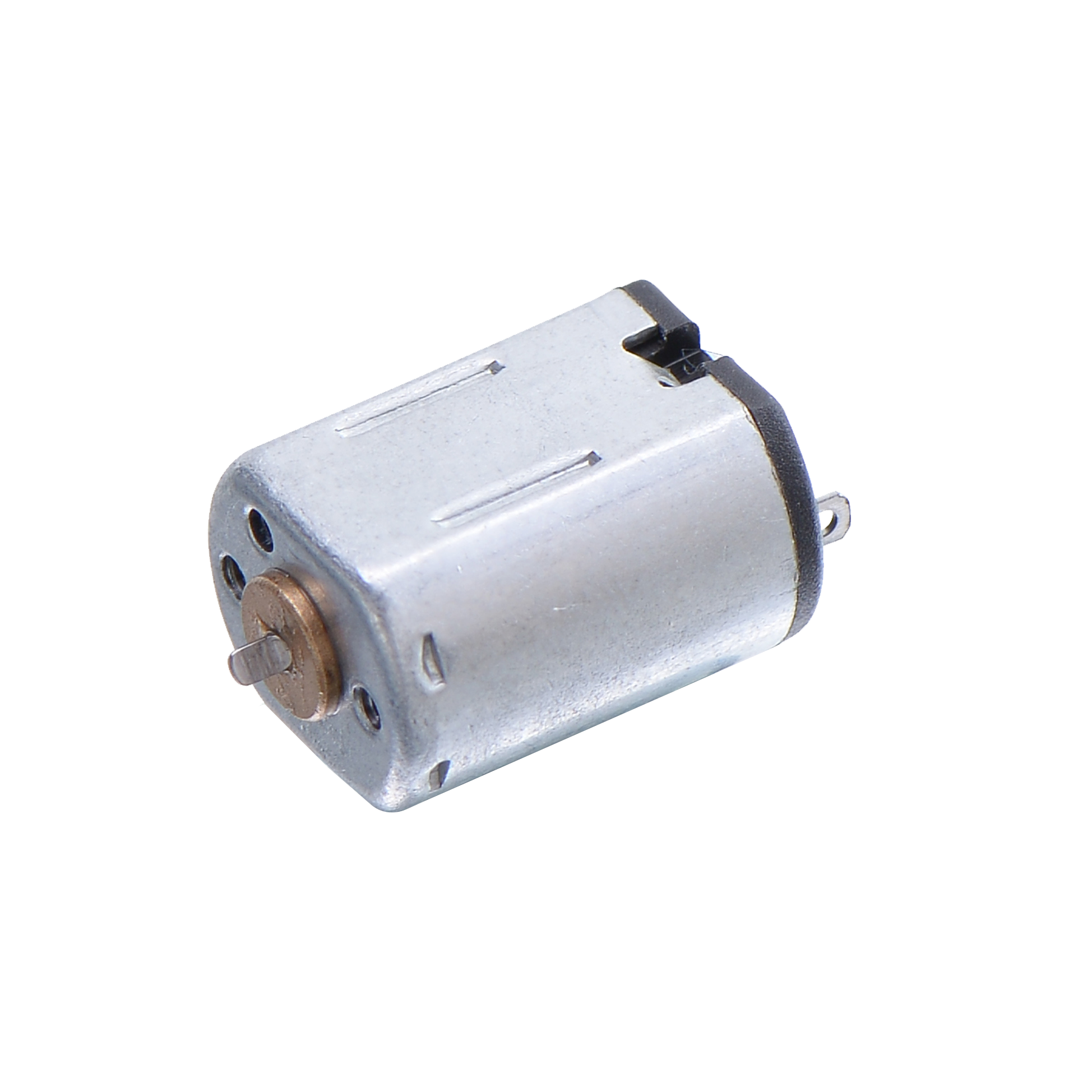

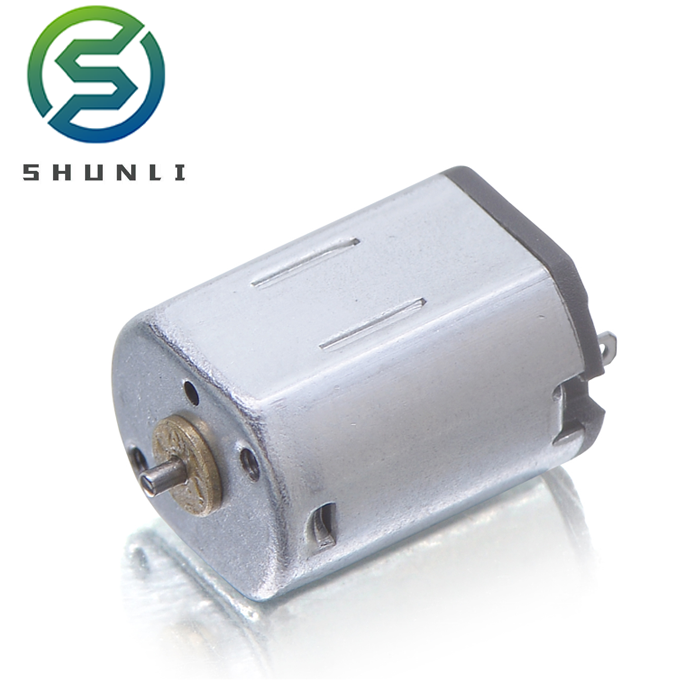

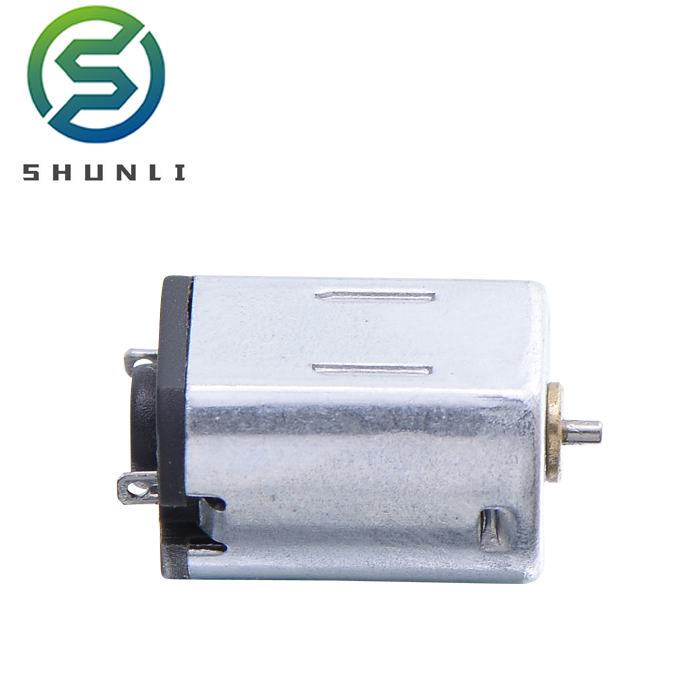

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Promotion

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA	2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Application

Certifications

Why Choose Us

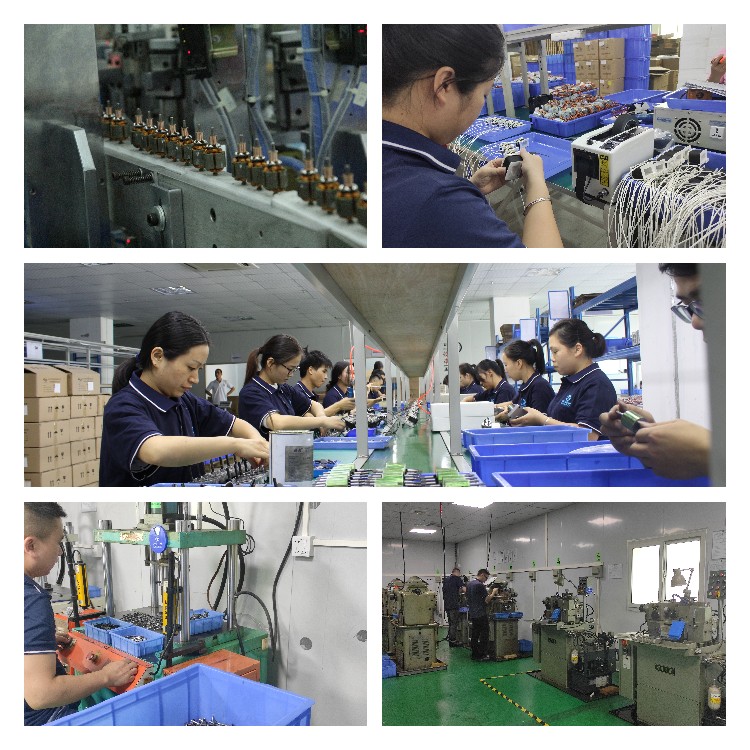

Our Factory

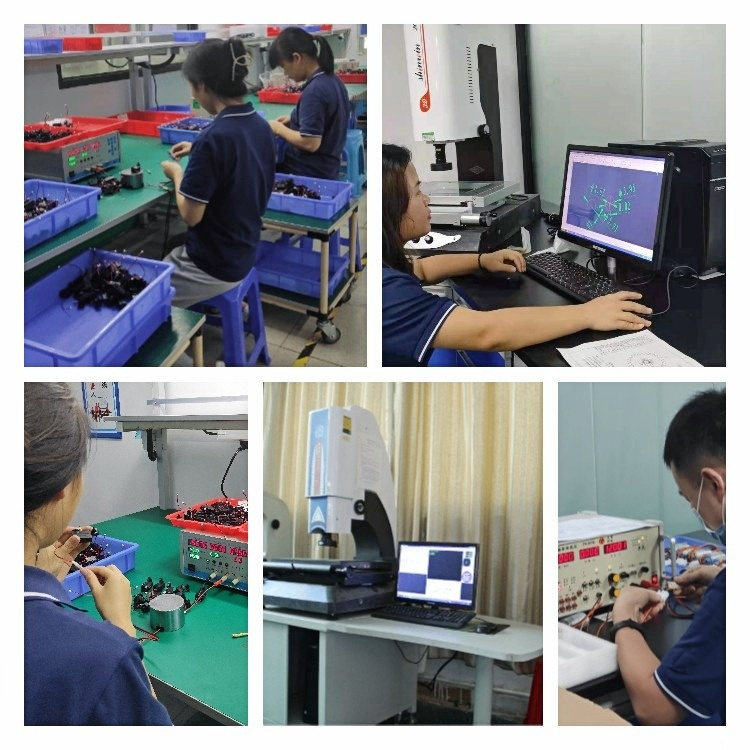

Quality Control

We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant business experience.

In order to confirm quality, from the moment we receive materials to the final shipment, every step of the way is carefully checked. Quality is the basis of our development.

Our Services

We are a verified gold seller in possession of high credibility.

100% on-time delivery rate ensures your product arrives timely.

Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.

Timely reply: your message will be replied to within 2 hours.

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

2. What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other methods.

3. I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

4. Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.

5. How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor assembly, we use dedicated testing machinery (such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers) to verify performance.
