Syncdrive Motor
1 / 5
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Power (W) | Current (mA) | Torque (mN.m / gf.cm) | ||

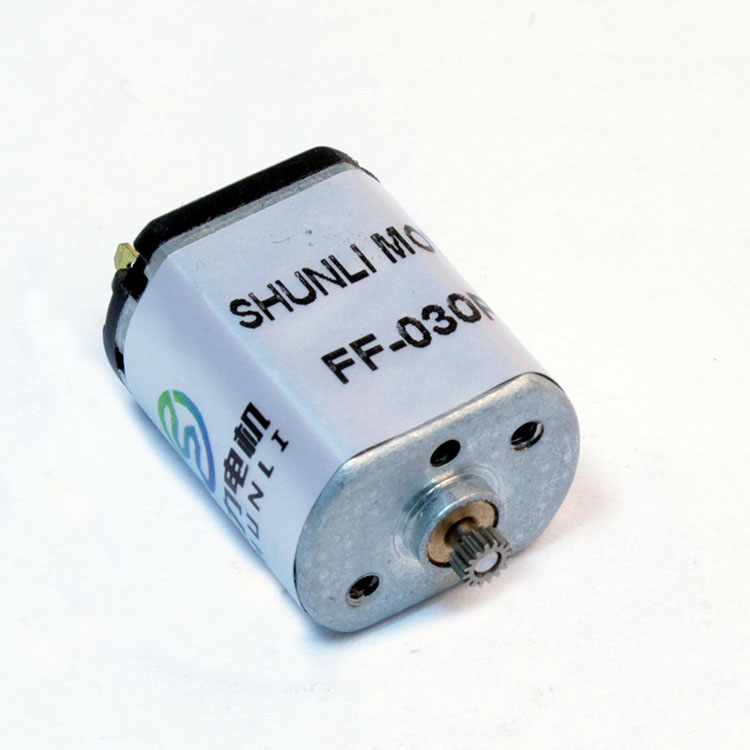

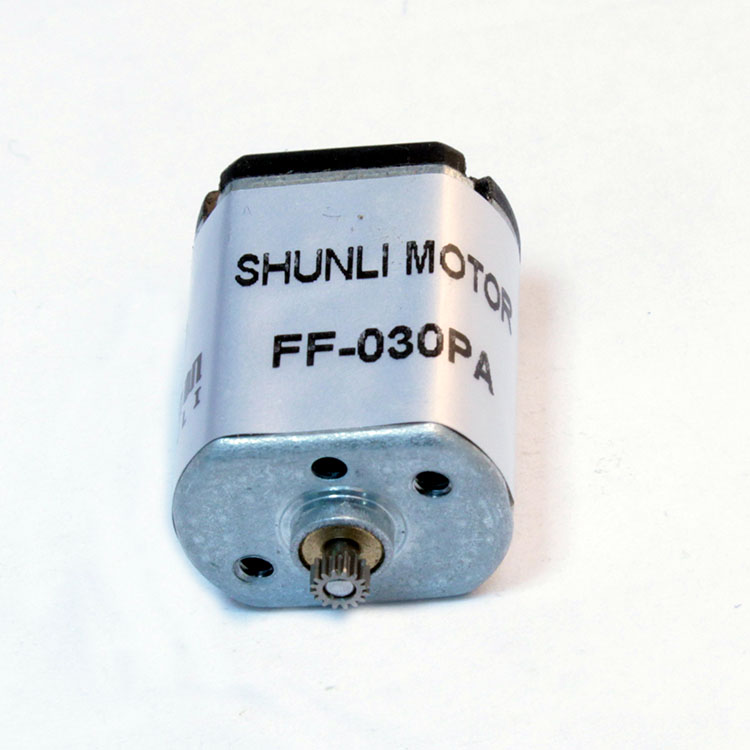

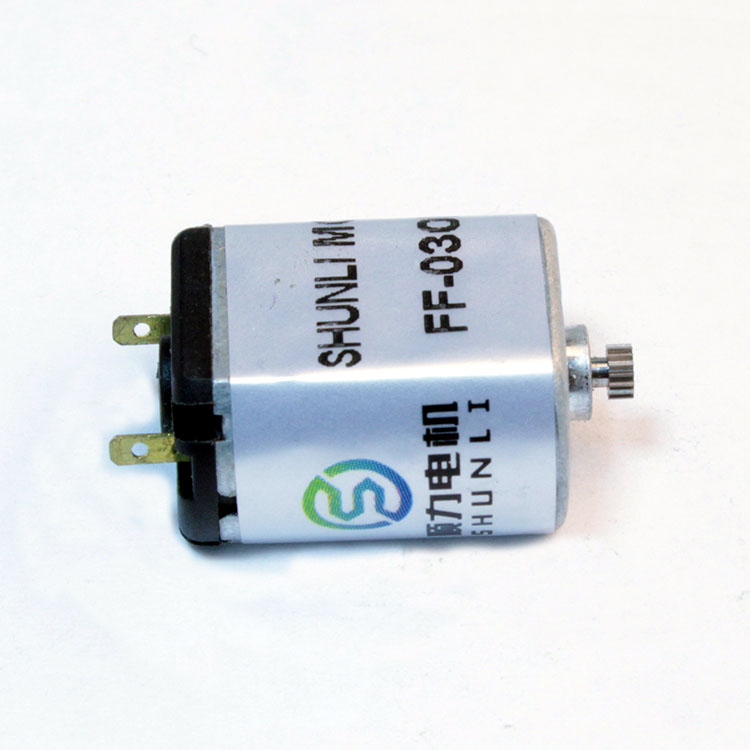

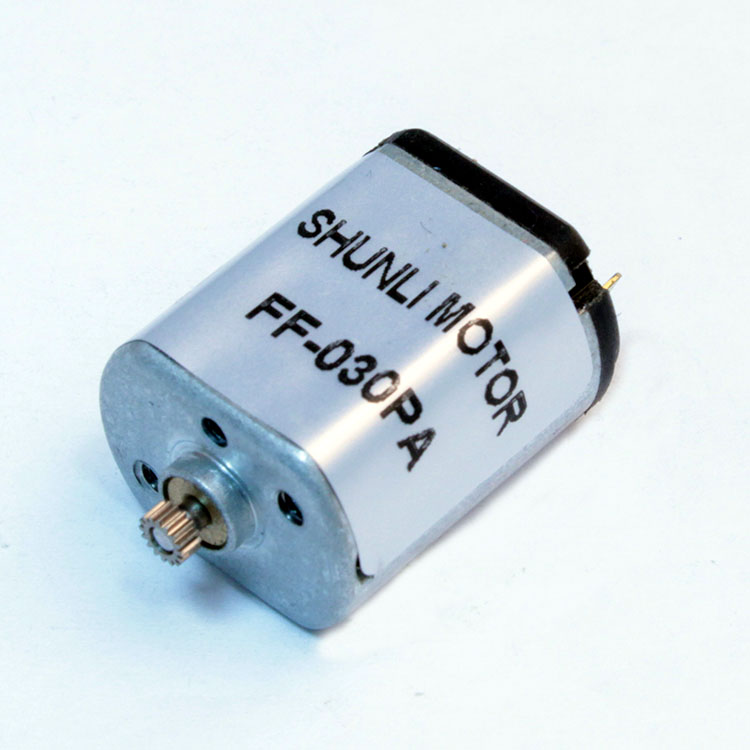

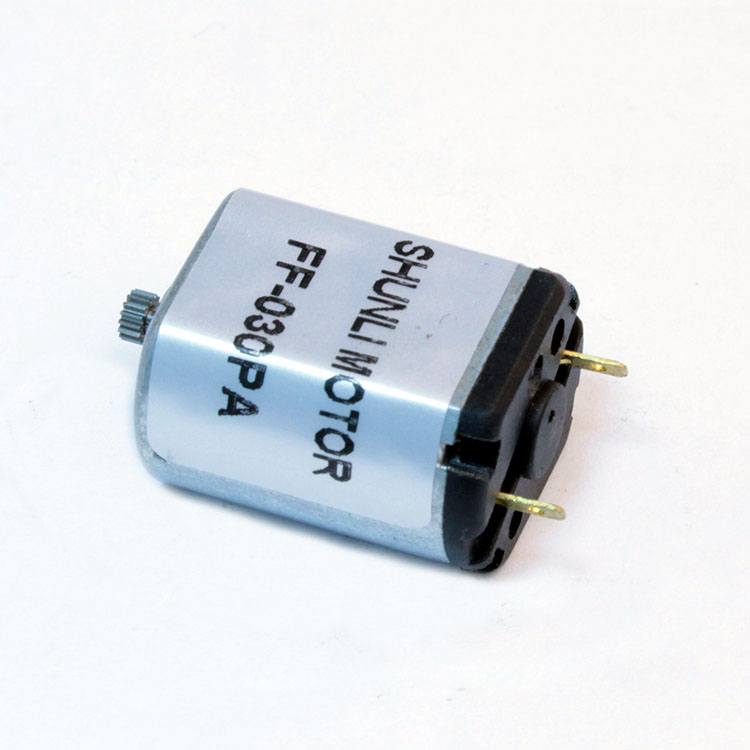

| FF-030PA | 11155 | 2.0~4.0 | 3VDC | 7200 | 45 | 5500 | 170 | 0.49/5 | 0.28 | 590 | 2.06/21 |
| 1592 | 2.0~4.0 | 3.5VDC | 14300 | 90 | 12500 | 300 | 0.49/5 | 0.64 | 2000 | 3.92/40 | |
| FF-030PK | 05440 | 3.5~12.0 | 12VDC | 11000 | 20 | 7800 | 65 | 0.49/5 | 0.4 | 180 | 1.67/17 |
Established in 2005, the facility is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. The products are exported to more than 50 countries and regions worldwide.
Dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries have been introduced to strictly control the quality of each motor.
We are a factory. We specialize in micro DC motor and DC gear motor development and production for over 14 years.
We can establish online trade assurance orders for new customers, supporting payments via MasterCard, Visa, PayPal, or TT bank transfers.
Yes, we can design and customize specialized motors according to specific customer requirements and application specifications.
Yes, our motors are certified with CE, FCC, ISO, and other relevant standard credentials. Additional certifications can be applied for as requested.
We have dedicated quality control inspectors monitoring every production line process. Finished motors undergo comprehensive testing using advanced machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Yes, our mini 1.5V, 9V, and 12V DC motors can be customized with matching counter weights specifically engineered for micro fans and vibration applications.
