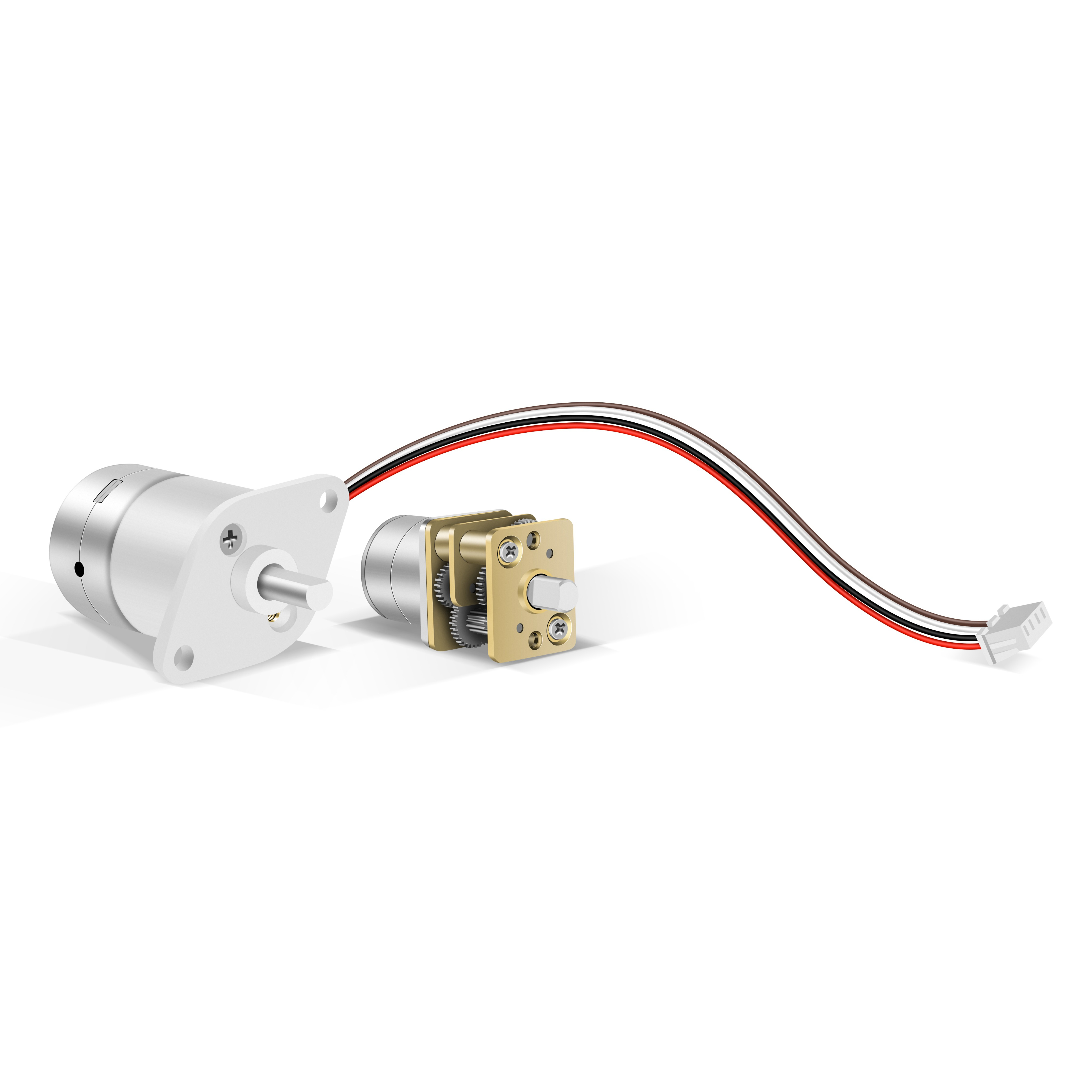

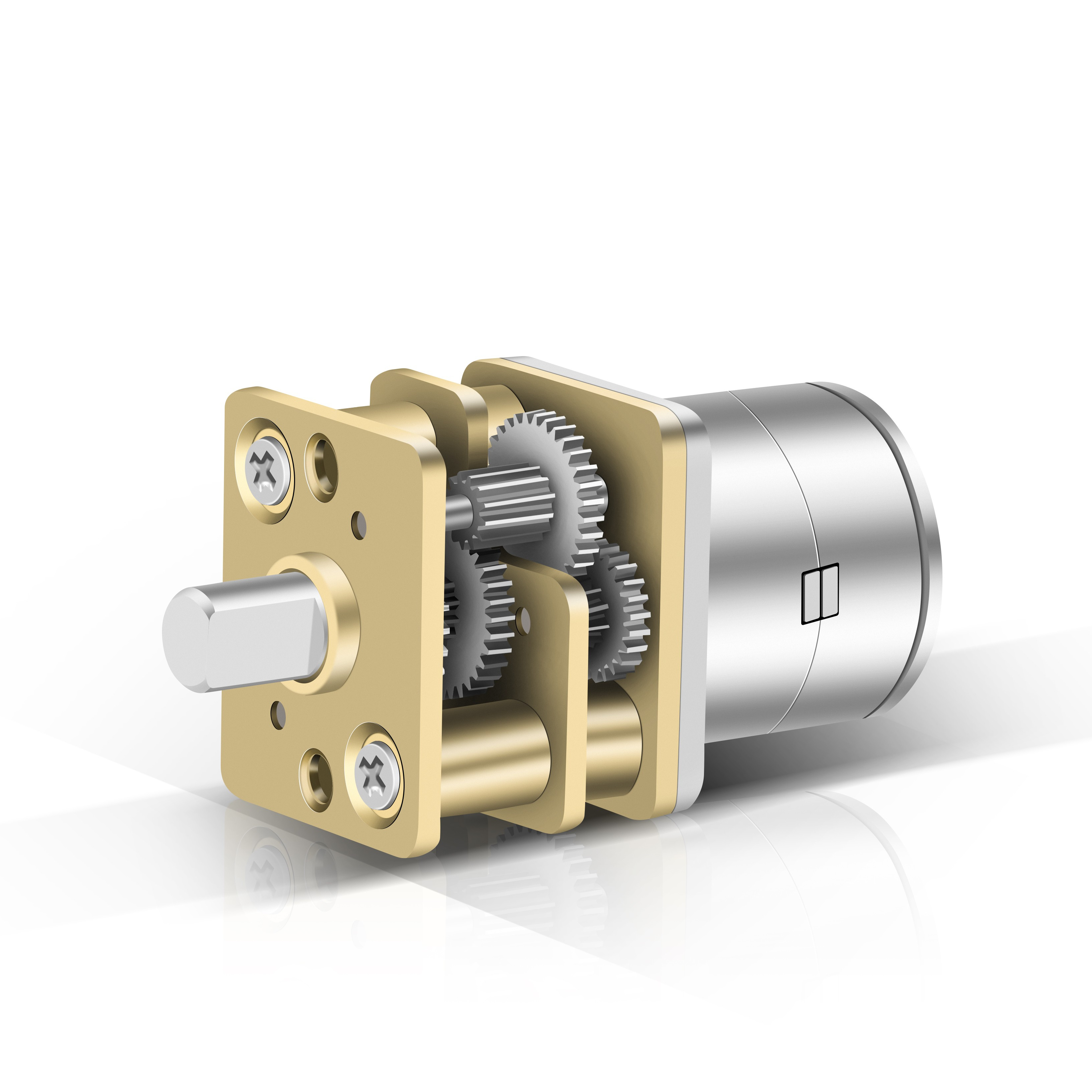

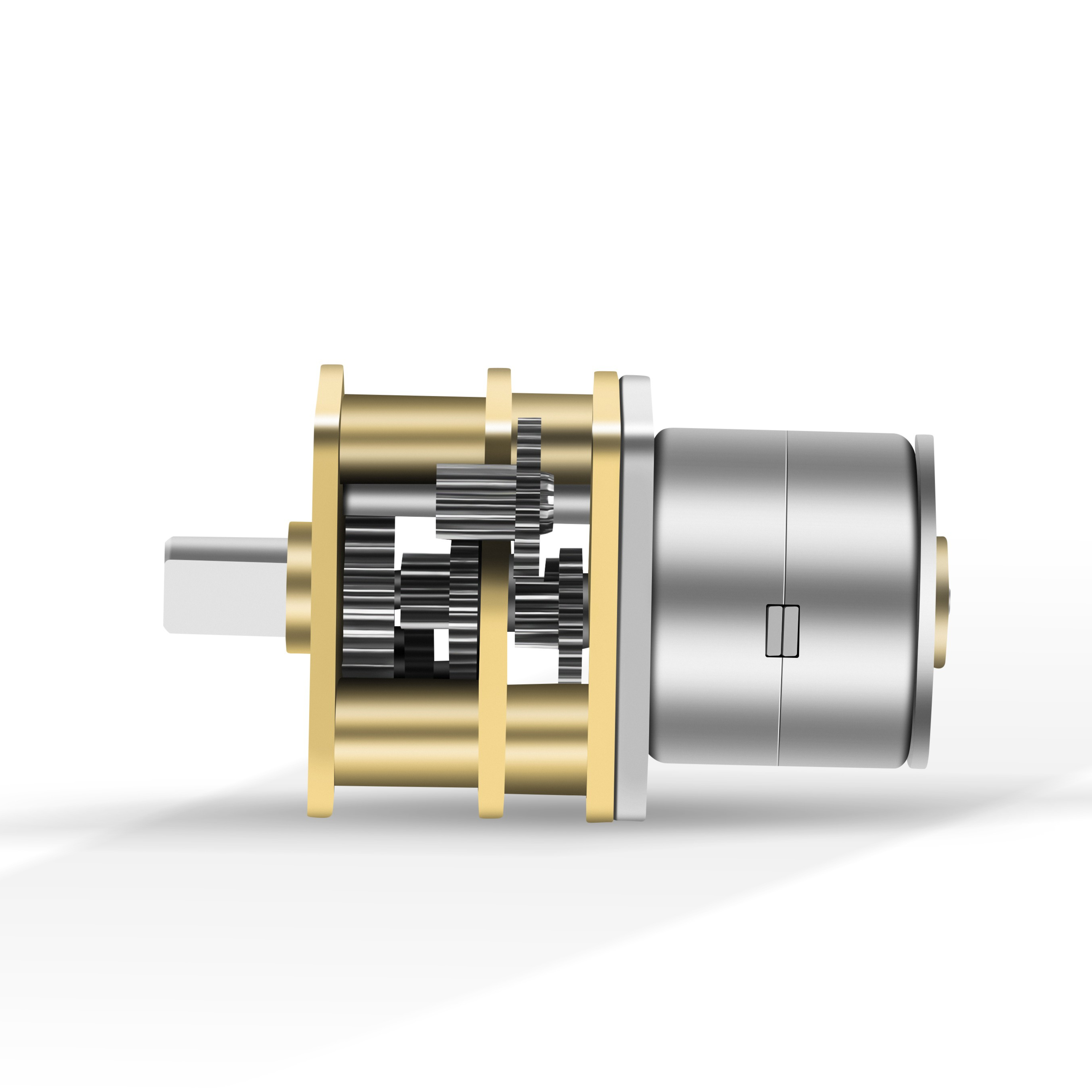

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Micro DC Gear Motor Overview
Product Description
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

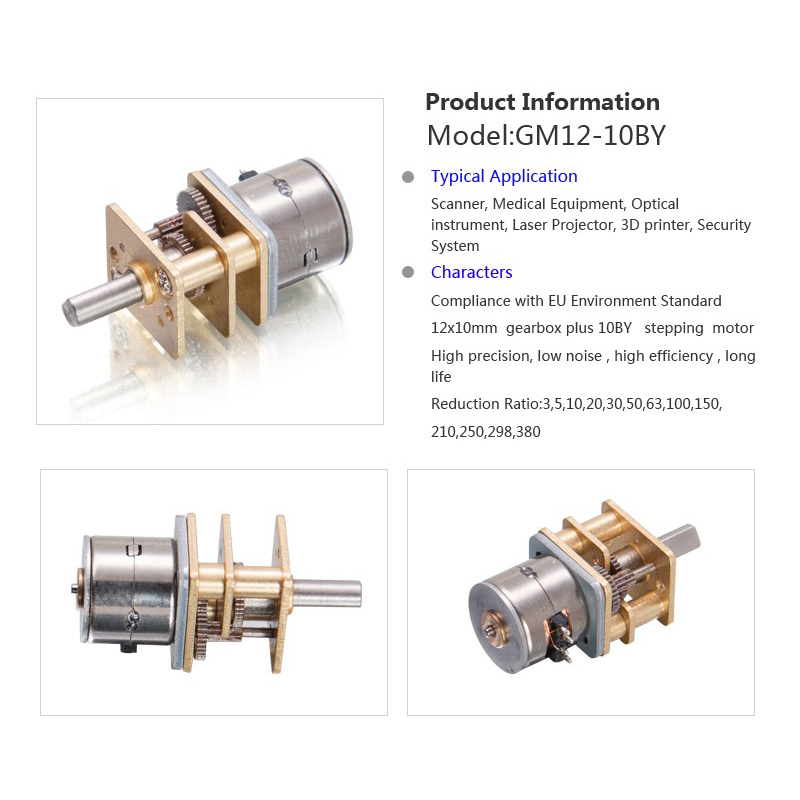

Micro DC Gear Motor Image
Reference Drawing & Specification (GM12-10BY)

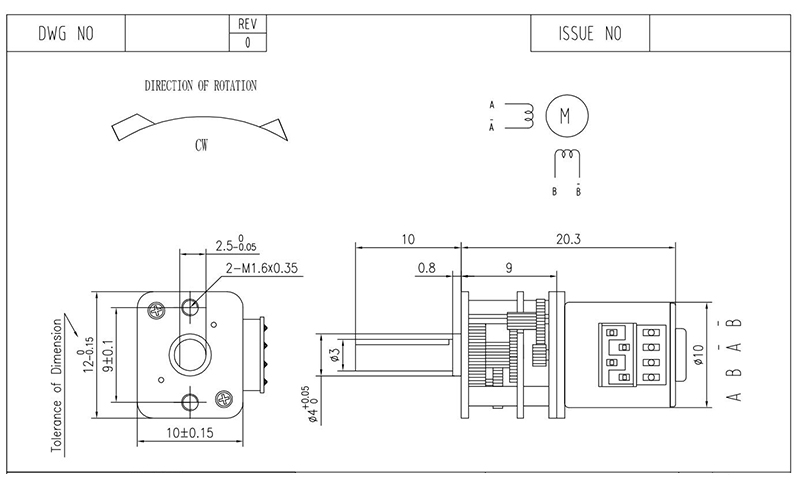

GM12-10BY Motor Reference Drawing
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L" (mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load State Rated State Stall State
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5
Recommended Products

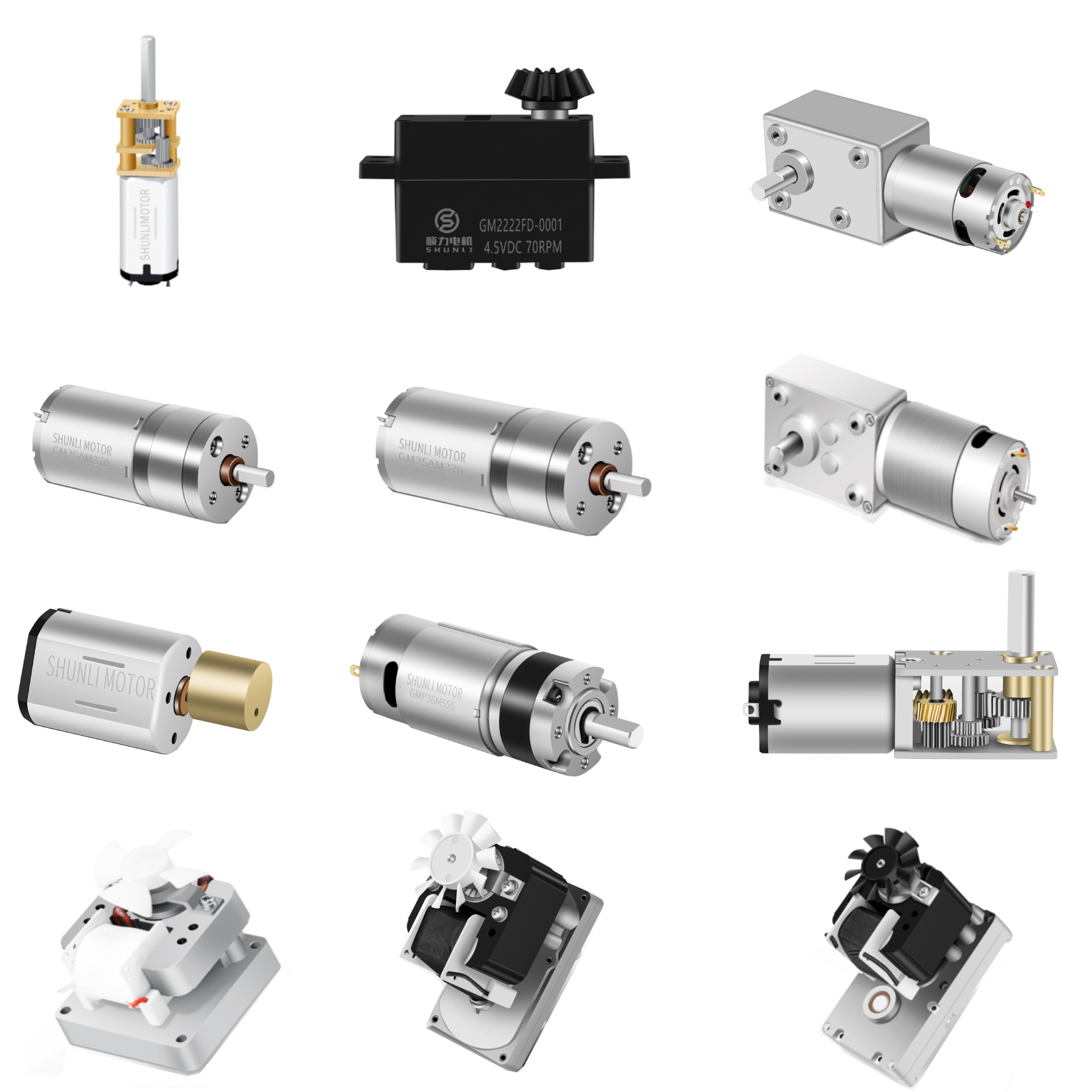

Recommended Micro Geared Motor Options Recommended Stepper Motor Models
Certifications
Product Quality Certifications
Customer Evaluation
Customer Feedbacks and Reviews
Factory Overview

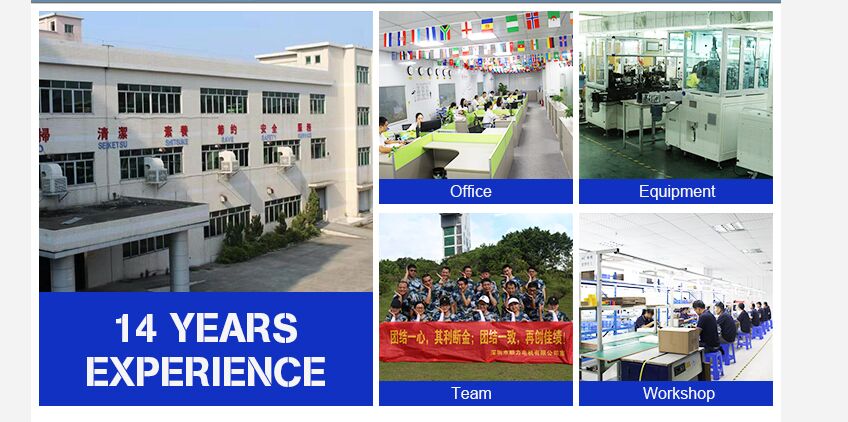

Factory Production Line Manufacturing Equipment
Frequently Asked Questions
QAre you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors for over 14 years.
QWhat is the payment term for a new customer?
We accept various payment methods including online secure transactions (supporting Master Card, Visa, etc.), PayPal, and T/T bank transfer.
QI cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize and design suitable motors matching our customer's specific technical requirements.
QDo you have certifications for your motors?
Yes, our motors comply with CE, FCC, ISO, and other relevant standard certificates. We can also apply for other specific certifications if requested.
QHow do you manage Quality Control?
We deploy professional inspection staff on every production line process. Once production is completed, full testing is performed using quality control machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
QCan you provide motor samples for testing before a bulk order?
Yes, we can supply samples according to your specifications to verify compatibility and performance before proceeding with large-scale production.
