6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

6v 12v 24v micro motor electric car motor micro dc motor

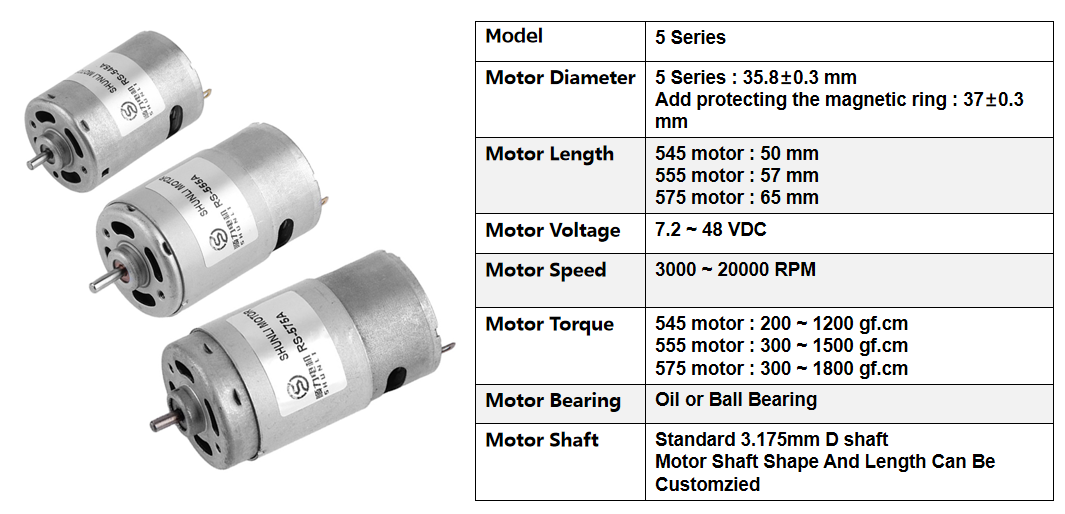

Product Details

Motor Customized Specification, Please contact me.

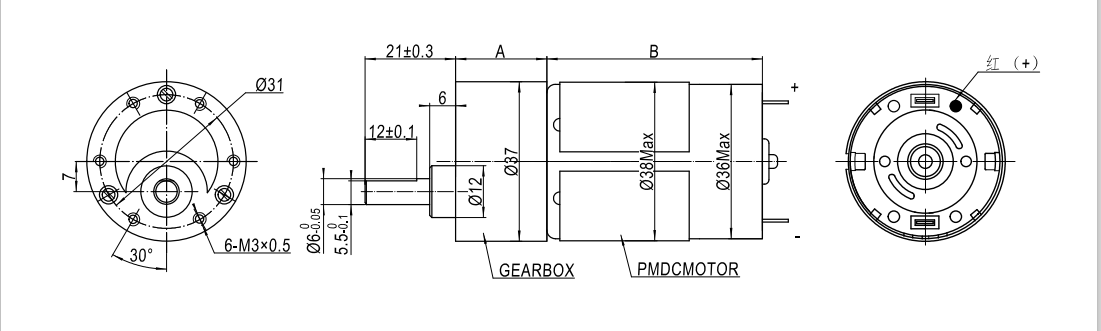

Reference Drawing

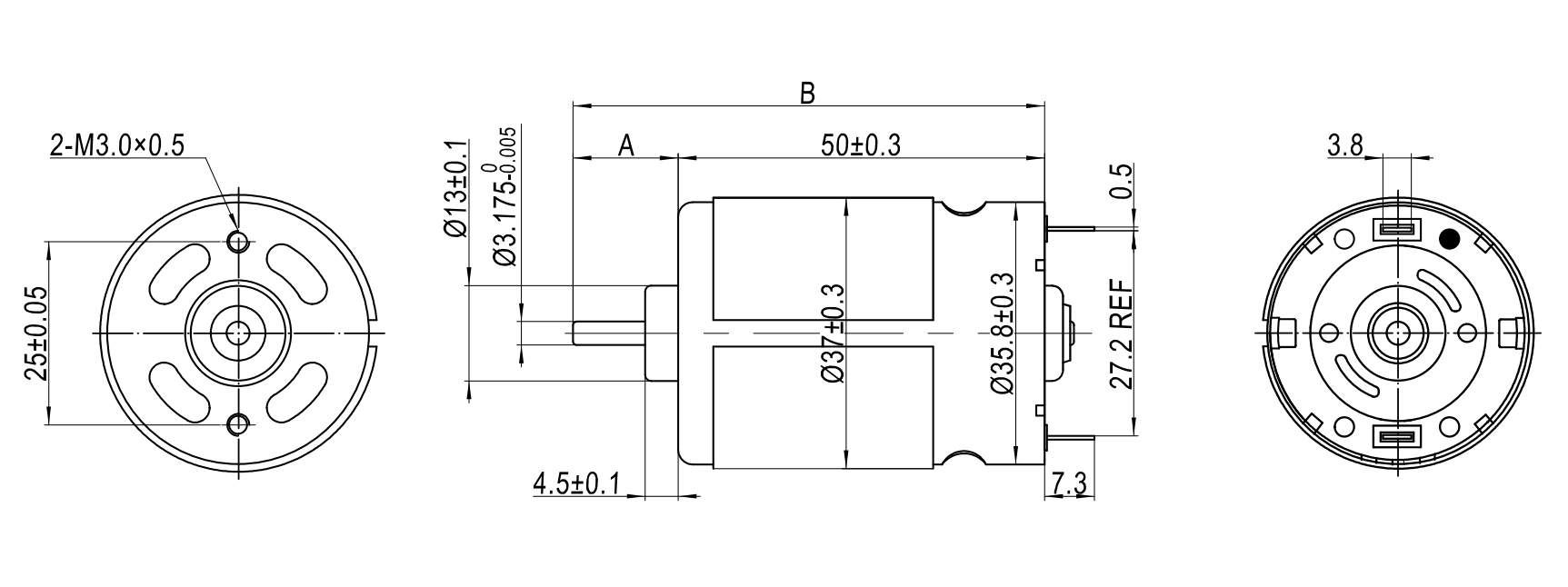

RS - 545 A

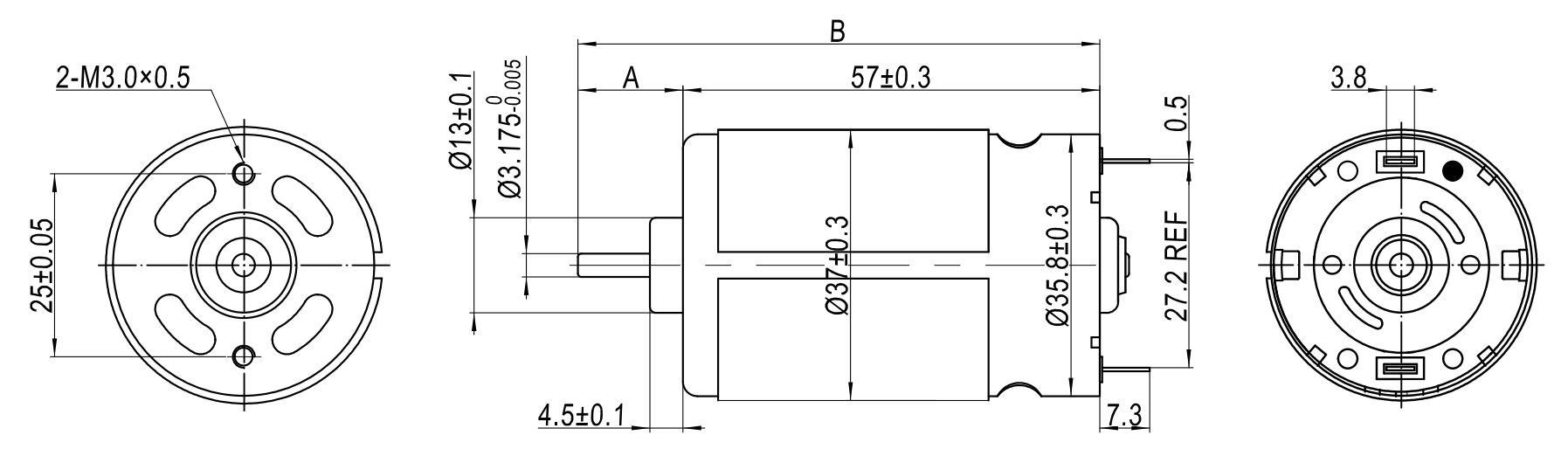

RS - 555 A

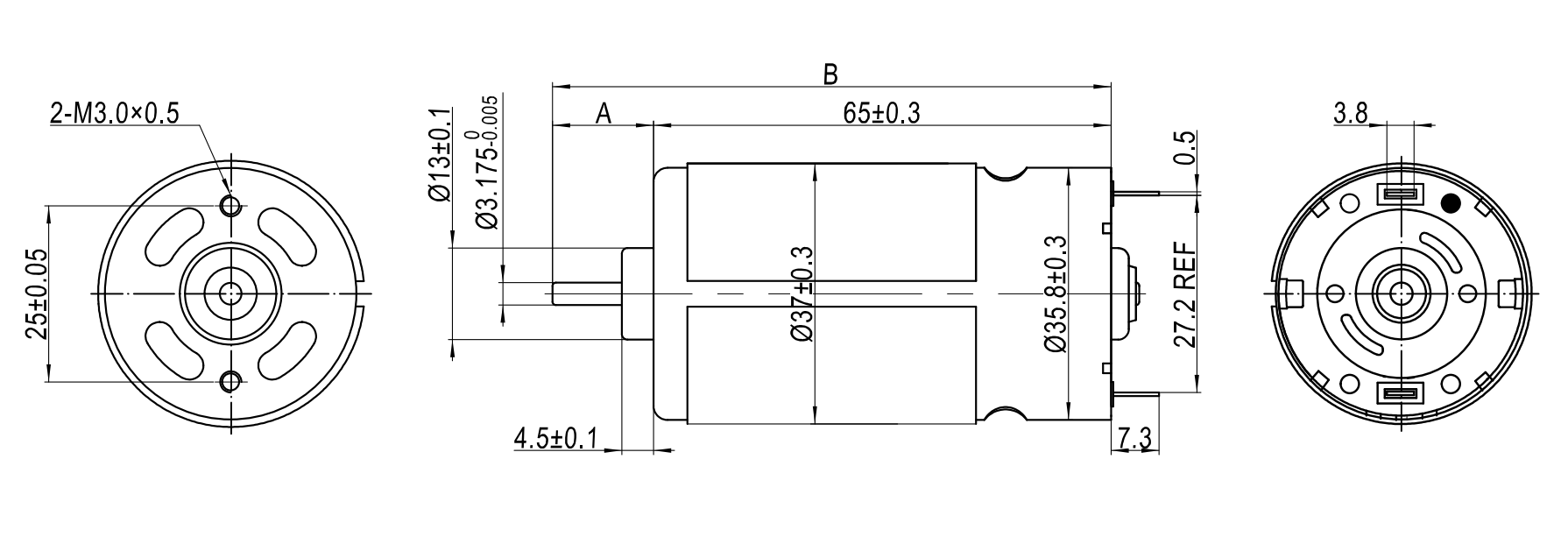

RS - 575 A

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Recommend Product

Frequently Asked Questions

Q Can the motor specifications and shaft dimensions be customized?

Yes. The technical parameters such as voltage, speed, torque, and power, as well as the shaft length and shape, can be customized to match your specific application requirements.

Q What are the typical operating voltage ranges for these micro DC motors?

These micro motors support wide voltage ranges. The standard models shown in our datasheet operate at 6.0V, 12V, or 24V DC depending on the exact model configuration.

Q What type of applications are these micro DC motors suitable for?

They are commonly used in electric car components, precision automation equipment, smart household appliances, automotive electronics, and various small power transmission systems.

Q How do I select the right motor model (e.g., RS-545, RS-555, RS-575) for my design?

You can refer to our Reference Datasheet for detailed no-load and rated metrics like speed (RPM), current (A), and torque. Selecting a motor depends on your target load, operating voltage, and mechanical space limits.

Q Are there technical drawing parameters available for integration?

Yes. We provide standard dimensional reference drawings for the RS-545 A, RS-555 A, and RS-575 A models. Customized drawings can also be drafted upon project request.

Q How do I request a custom sample with specific requirements?

Please contact our engineering support team with your detailed specification checklist, including rated voltage, target RPM, expected torque, housing constraints, and shaft configuration.
