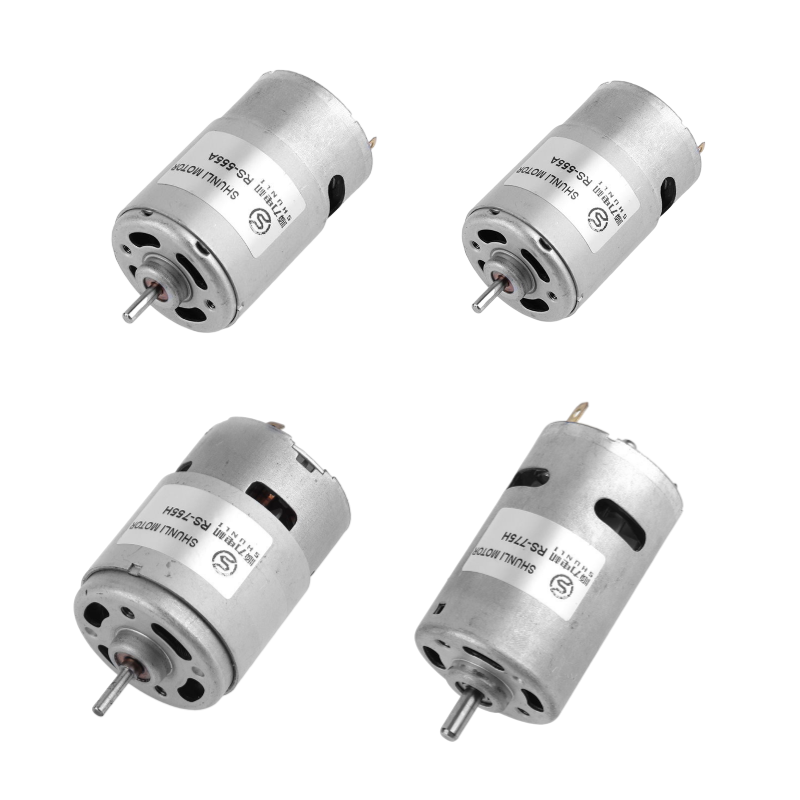

775 dc motor for power tools low price motor 12v 24v dc motor
Product Details
⚙️
Motor Customized Specification, Please contact me.
Reference Drawing
------ RS - 755 H

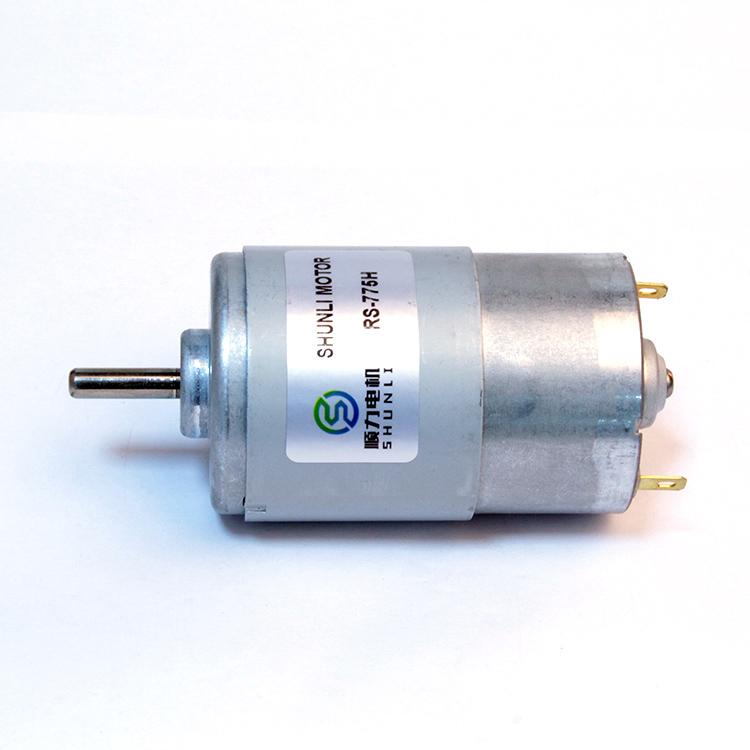

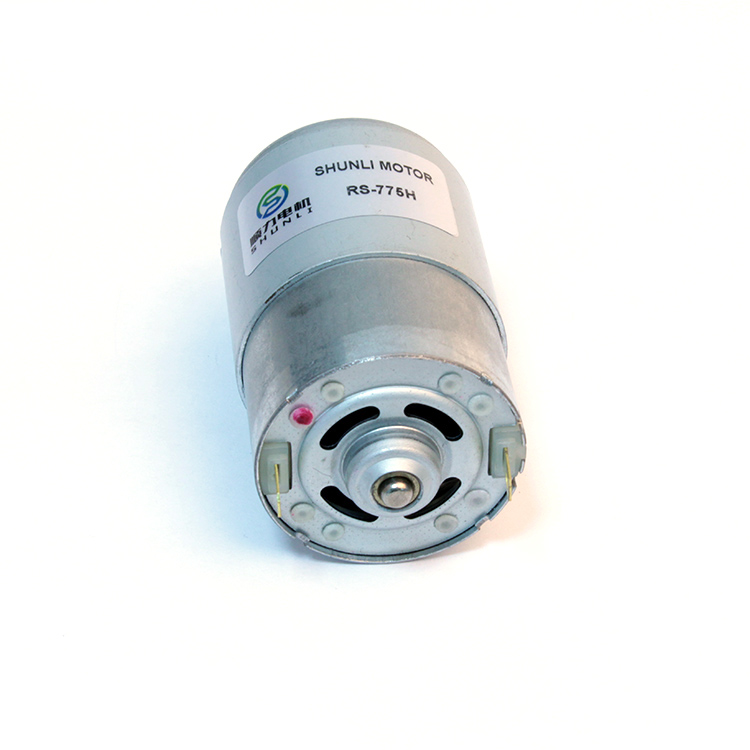

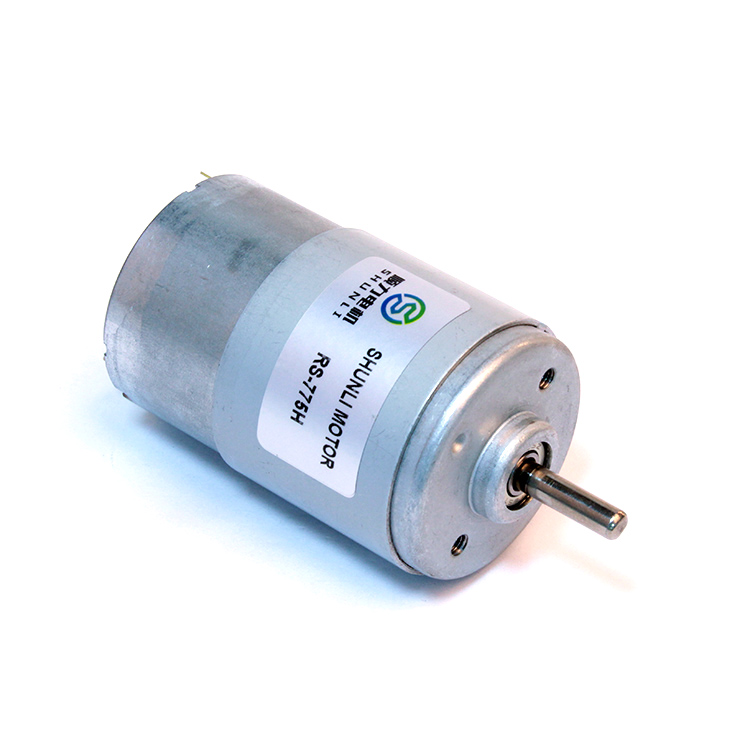

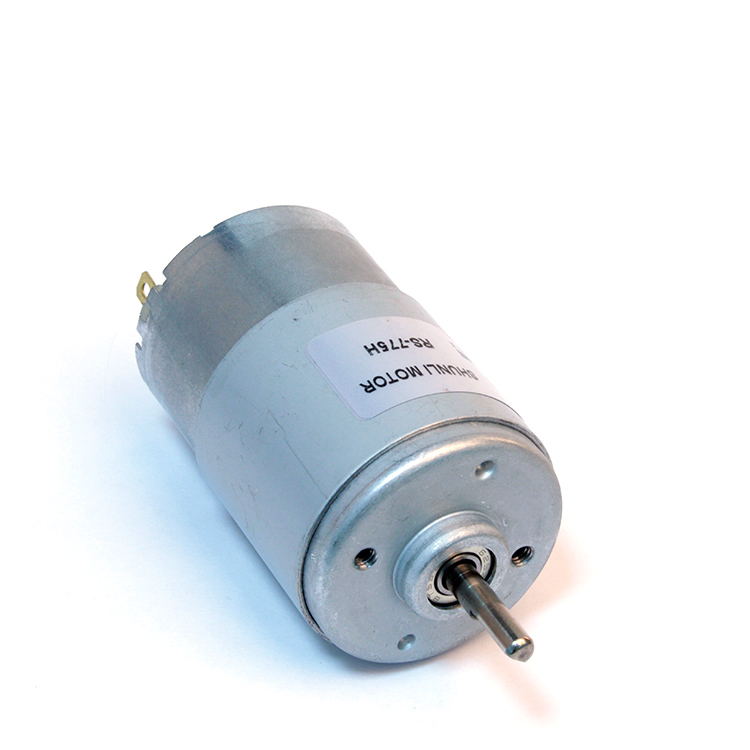

------ RS - 775 H
📏
The length of shaft can be customized, Please contact me.
| PMDC MOTOR Technical Data |
| Model |
Rated Voltage (V) |
No-Load |
Rated |
Stall |
| Operating Range |
Nominal |
Speed |
Current |
Speed |
Current |
Torque |
Power |
Current |
Torque |
| RPM |
A |
RPM |
A |
mN.m / gf.cm |
W |
A |
mN.m / gf.cm |
| RS-770H |
8523R |
6.0~12.0 |
12 VDC |
15000 |
2.2 |
13177 |
15.91 |
81/826.2 |
111.8 |
115 |
666.9/6802 |
| RS-775H |
25110R |
6.0~24.0 |
24 VDC |
3478 |
0.15 |
2925 |
0.75 |
44.4/452.9 |
13.35 |
4.07 |
245.7/2506 |
1. Are you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience.
2. What is the payment term for a new customer?
We can establish secure online assurance orders for new customers, supporting online credit card payments (MasterCard, Visa, etc.). Payment via PayPal or T/T is also available.
3. If I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize technical specifications, dimensions, and shaft designs according to customer requirements.
4. Do you have certificates for the motors?
Yes, our motors hold key certifications such as CE, FCC, ISO, etc. If you require other certifications, we can apply for them for your order.
5. How is your Quality Control?
We have dedicated quality control inspectors at every production stage. Finished products are fully tested using advanced machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Testers, and Noise Testers.
6. Can I request product samples before placing a bulk order?
Yes, samples can be made available for performance and quality evaluations. Please reach out with your requirements for further information.
