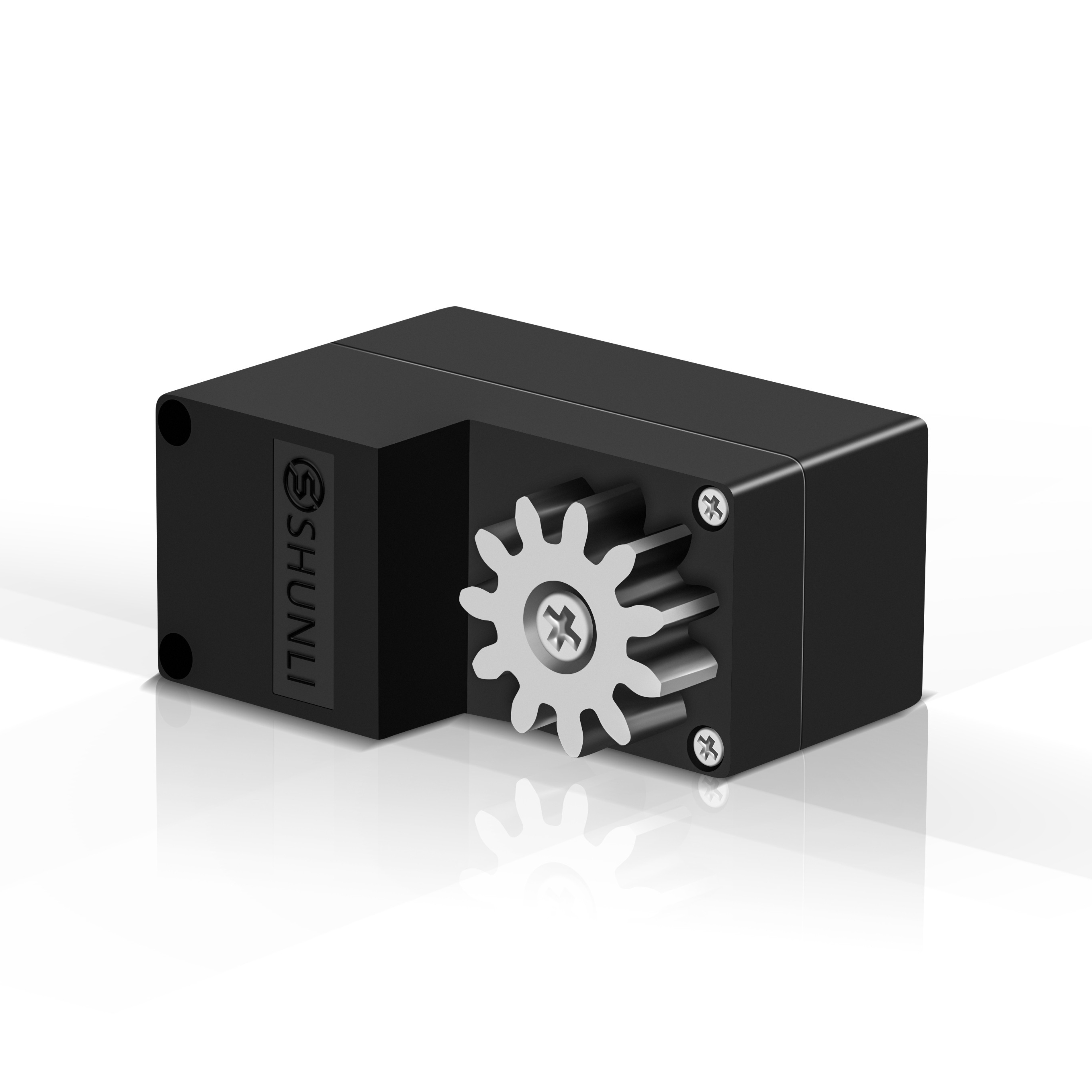

Syncdrive Motor
1 / 4
| Parameter | Value / Range |
|---|---|
| Ratio | 241k |
| Max. Rated Torque | 1.5 ~ 2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||

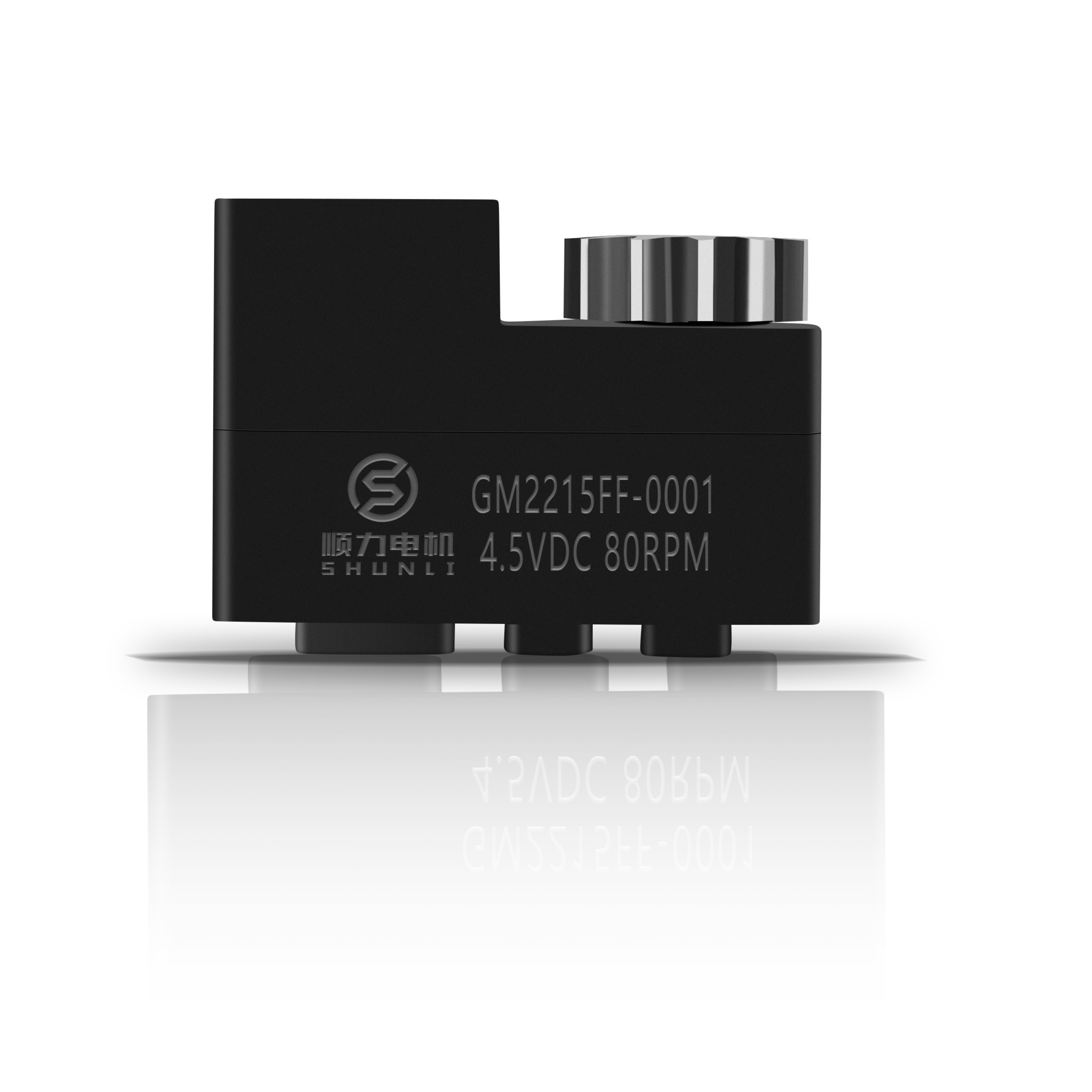

| GM2215FMN20-241K | 1 : 241 | 4.5 VDC | 43 | ≤ 50 | 34 | ≤ 120 | 25 / 250 | ≤ 350 | 0.15 / 1.5 |
| 58 | ≤ 65 | 50 | ≤ 130 | 28 / 280 | ≤ 680 | 0.18 / 1.8 | |||
| 68 | 75 | 56 | ≤ 140 | 30 / 300 | ≤ 750 | 0.2 / 2.0 | |||
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
We are a factory specializing in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant purchasing experience.
In order to confirm quality, every step from raw material receiving to shipment is carefully checked. Quality is the core foundation of our development.
