390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

1 / 5

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 DC Motor for Machine Fan 12V 6000RPM Motor

Product Details

Motor Customized Specification

Reference Drawing

RS - 365

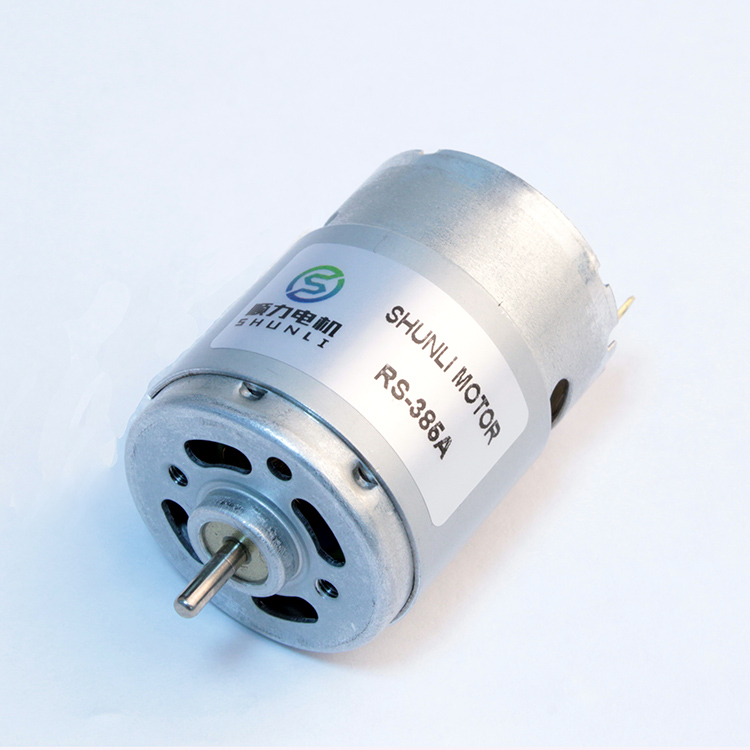

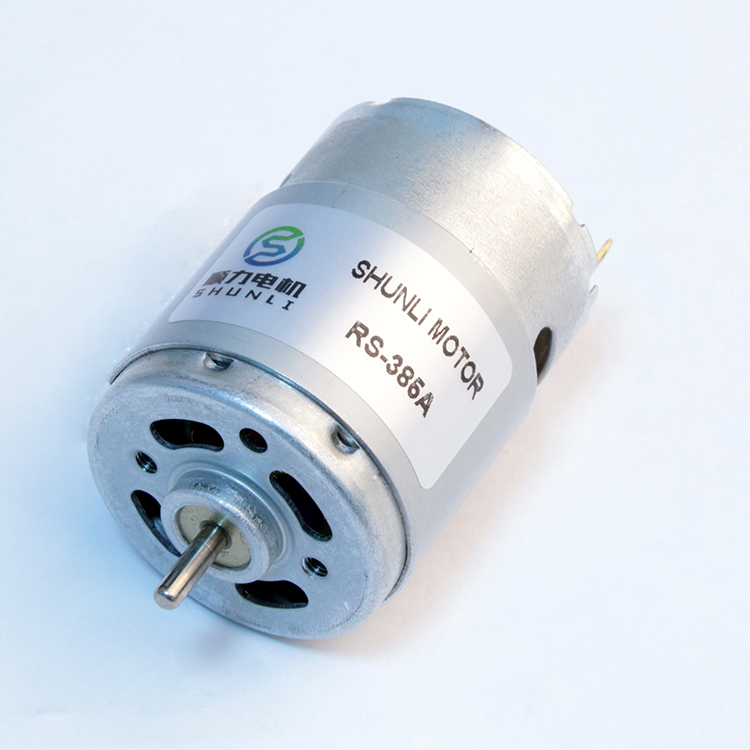

RS - 385

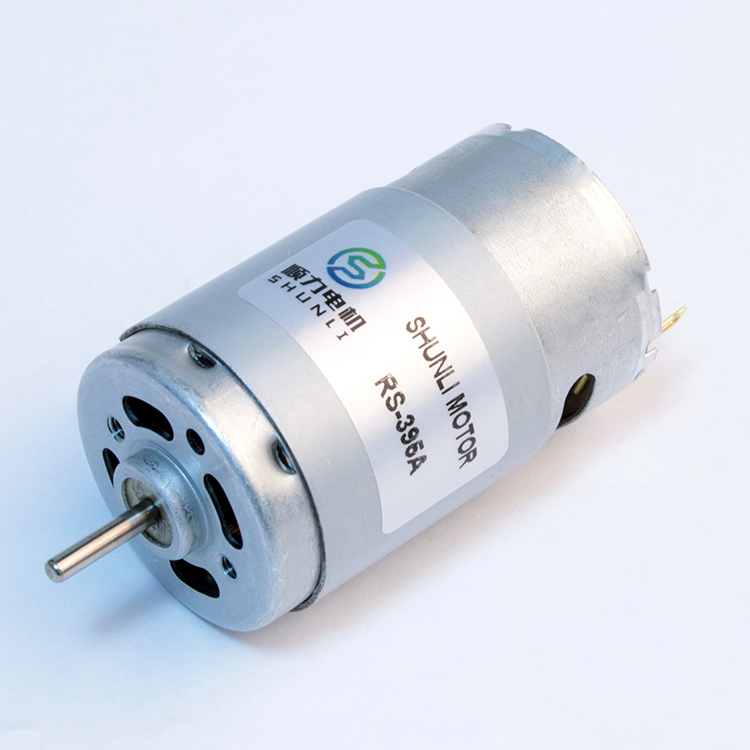

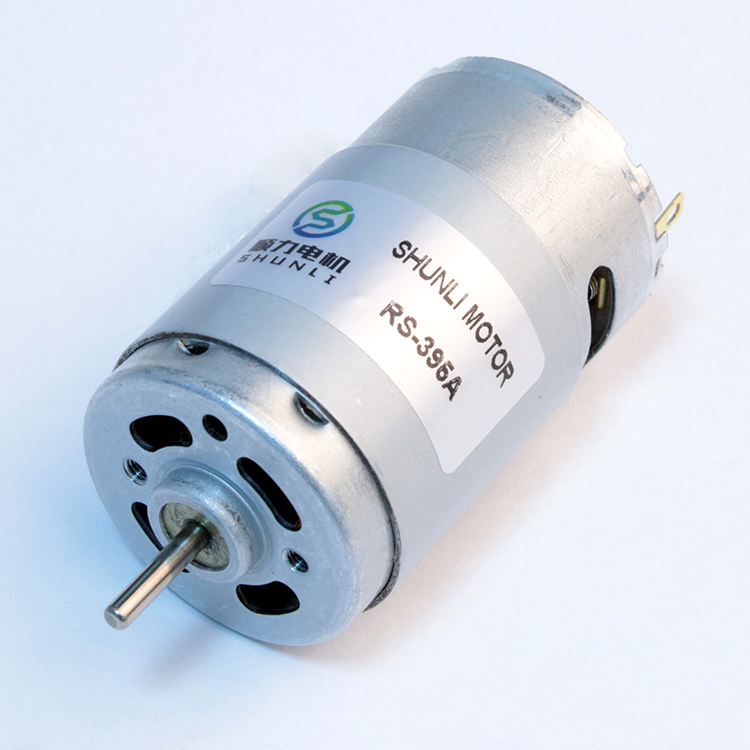

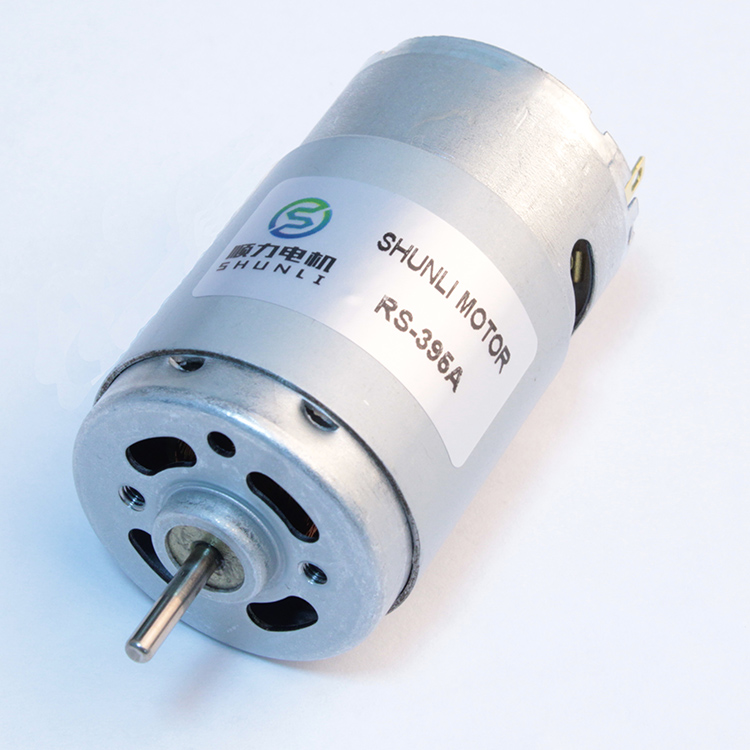

RS - 395

The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Frequently Asked Questions (FAQ)

Q What are the primary applications for the RS-390 DC Motor?

The RS-390 PMDC motor is highly versatile and widely used in machine fans, small household appliances, electric tools, office equipment, and various automated driving mechanisms requiring reliable high-speed operation.

Q Can the motor shaft length and specifications be customized?

Yes, we support full customization for motor specifications, including custom shaft lengths, voltages, speeds, and mounting configurations to meet your specific application requirements.

Q What voltage ranges are supported by these PMDC motors?

Depending on the exact model configuration (such as RS-390SH or RS-395SH), the operating voltage range typically spans from 6.0V DC to 24.0V DC. Please refer to the Technical Datasheet table for detailed model-specific voltages.

Q What is the maximum rated speed for the RS-390 DC motor?

Under a 12VDC nominal voltage configuration, the RS-390SH (2975 model) can achieve a no-load speed of up to 12,000 RPM, with a rated operational speed of approximately 10,165 RPM.

Q How do the RS-365, RS-385, and RS-395 motor models differ?

Each motor model belongs to a distinct frame size and internal winding design series, resulting in varying output power, torque capabilities, current draw, and speed limits to match different mechanical installation constraints.
