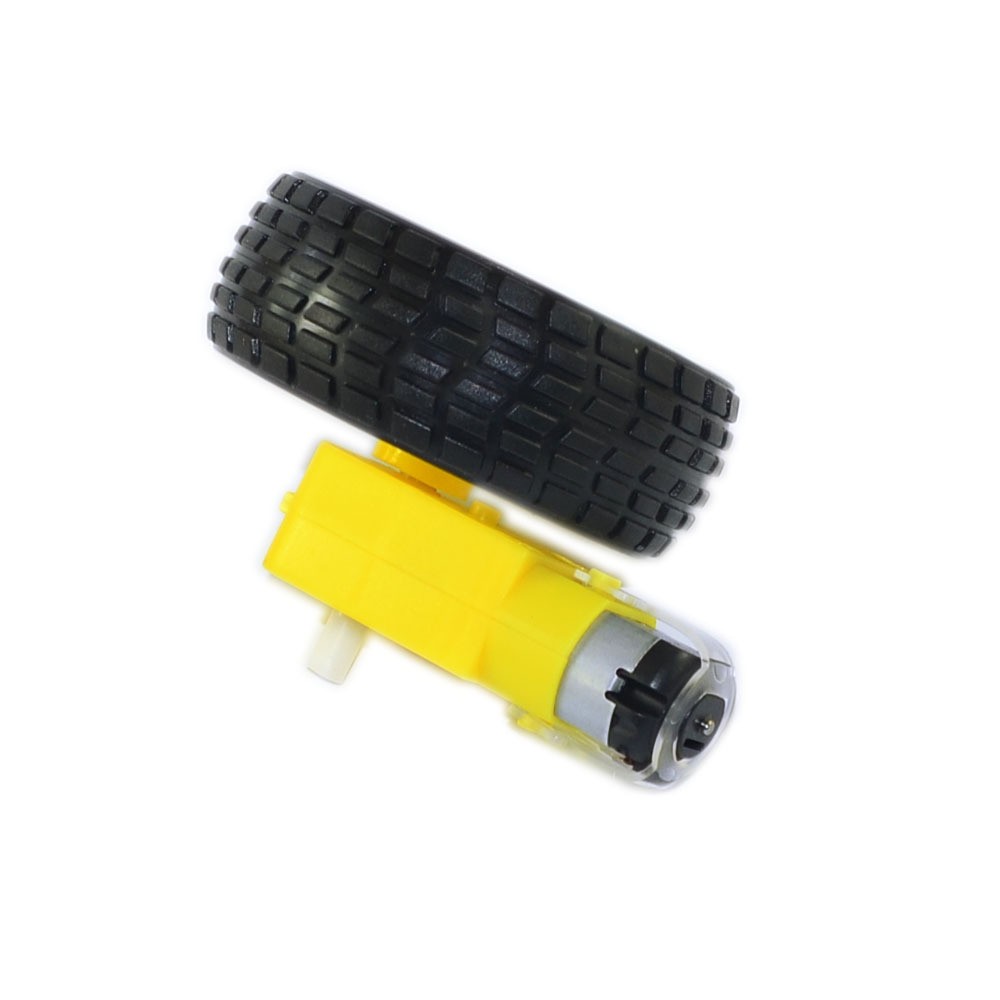

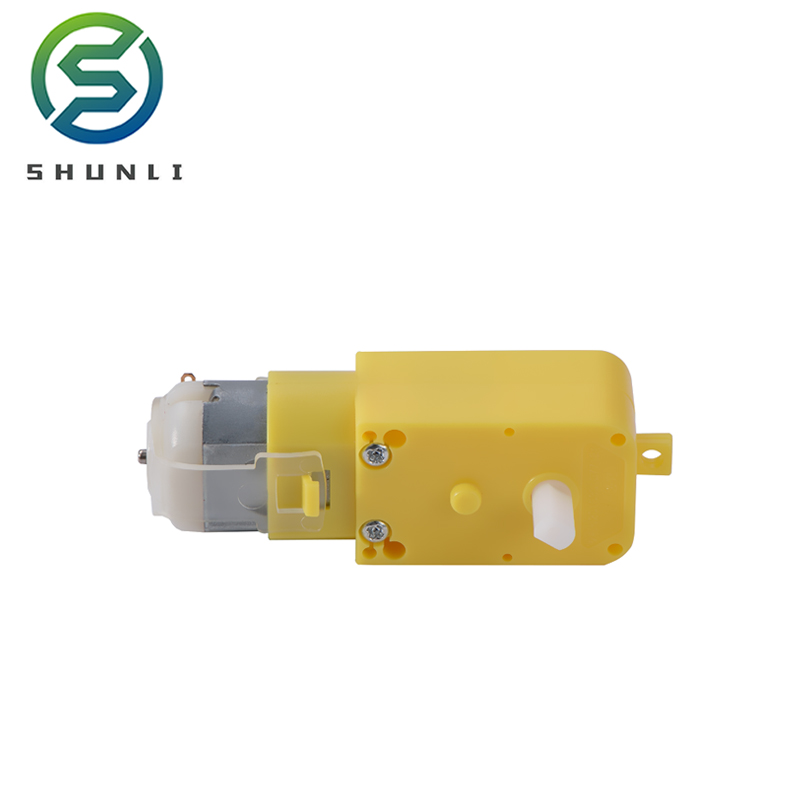

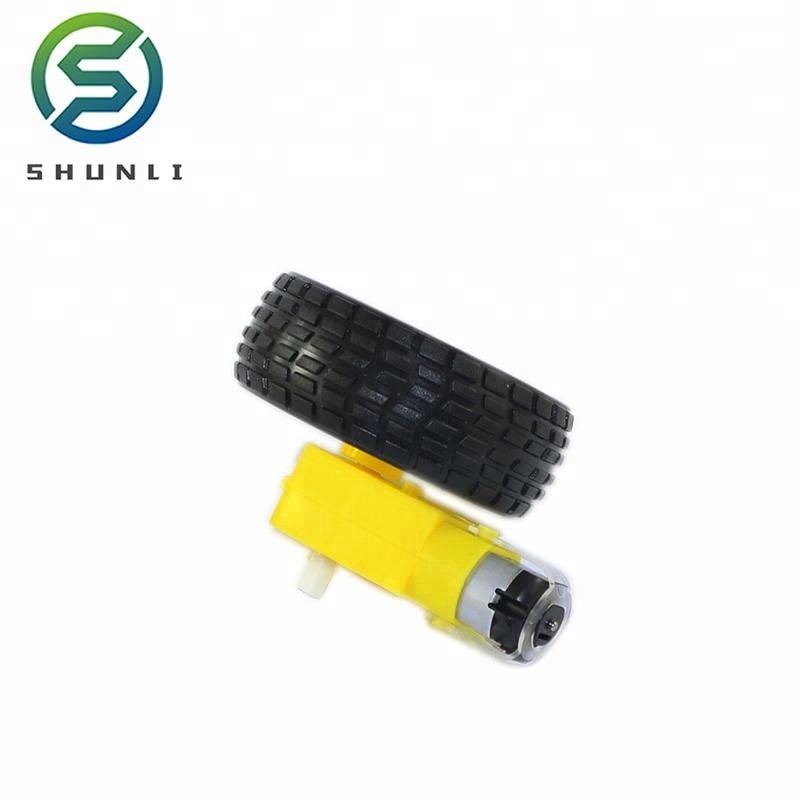

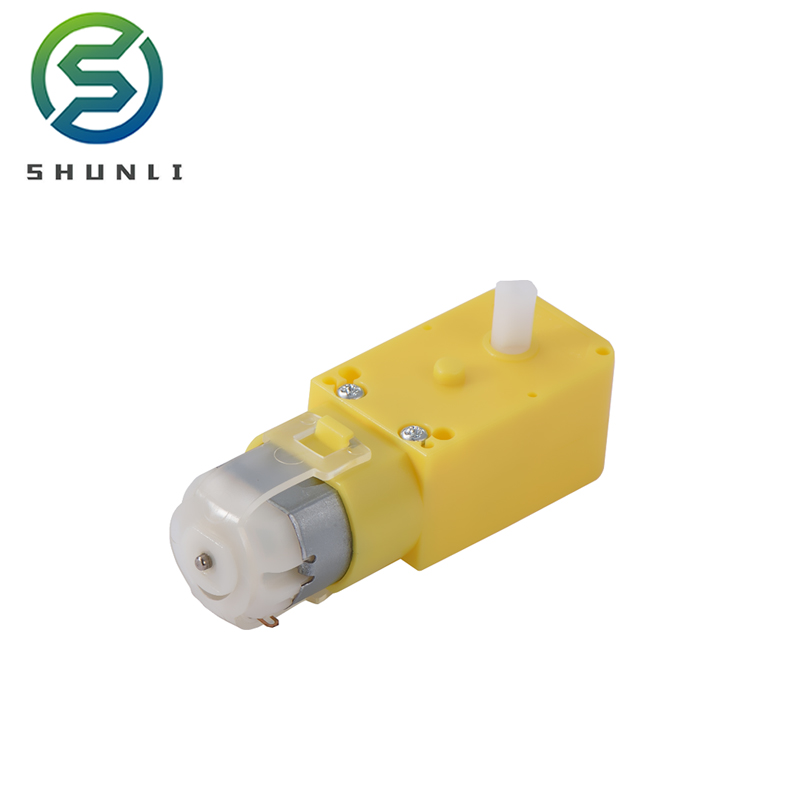

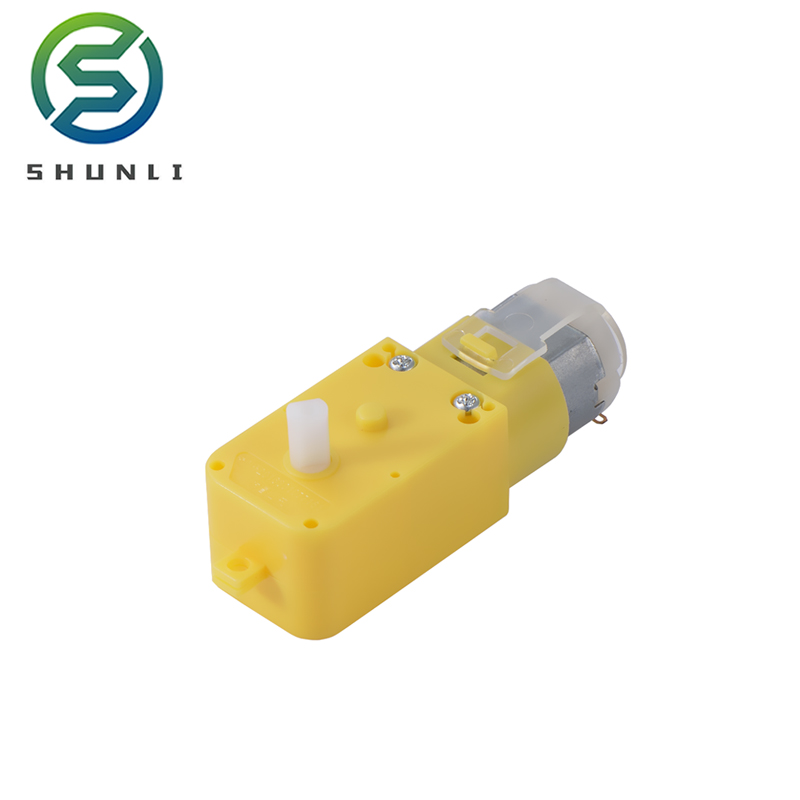

Syncdrive Motor
1 / 5
Our motors feature long life, high efficiency, and excellent stability. The drive is integrated within the motor to capture data with enhanced accuracy, making it ideal for basic projects and toy applications.
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated Voltage | Speed | Current | Speed | Current | Torque | Power Output | Stall Torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
We are a factory specializing in producing high-quality motors for more than 14 years. With three dedicated manufacturing facilities, a professional R&D team, mature management, and experienced engineers, we ensure a reliable and pleasant partnership.
To ensure top-tier quality, every step of the process—from receiving raw materials to final shipment—is carefully checked. Consistent quality is the foundation of our continuous development.
High credibility and proven track record of reliable service.
100% on-time delivery rate to ensure your products arrive when needed.
Standard samples ready within 2 weeks; custom samples within 3 weeks.
Timely response with all inquiries addressed within 2 hours.
We are a direct factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
We support online assurance orders, allowing payments via Master Card, Visa, and other methods. Customers can also pay through PayPal, TT, and other major platforms.
Yes, we can customize and design suitable motors based on specific customer requirements and performance needs.
Yes, our motors are certified with CE, FCC, ISO, and other standard regulations. We can also apply for additional certifications based on your local requirements.
We deploy professional inspectors at every production process. Completed motors undergo full testing using specialized equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Standard samples are typically completed within 2 weeks, while customized sample configurations are ready within 3 weeks.
Looking forward to your feedback!
