Syncdrive Motor
1 / 5
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
What is the operating voltage range for this yellow DC gear motor?
The motor operates within a wide working voltage range of 3.0V to 12.0V DC. The rated voltage options generally run at 3.0V or 4.5V depending on the selected model configuration.
What are the primary applications for this motor and wheel set?

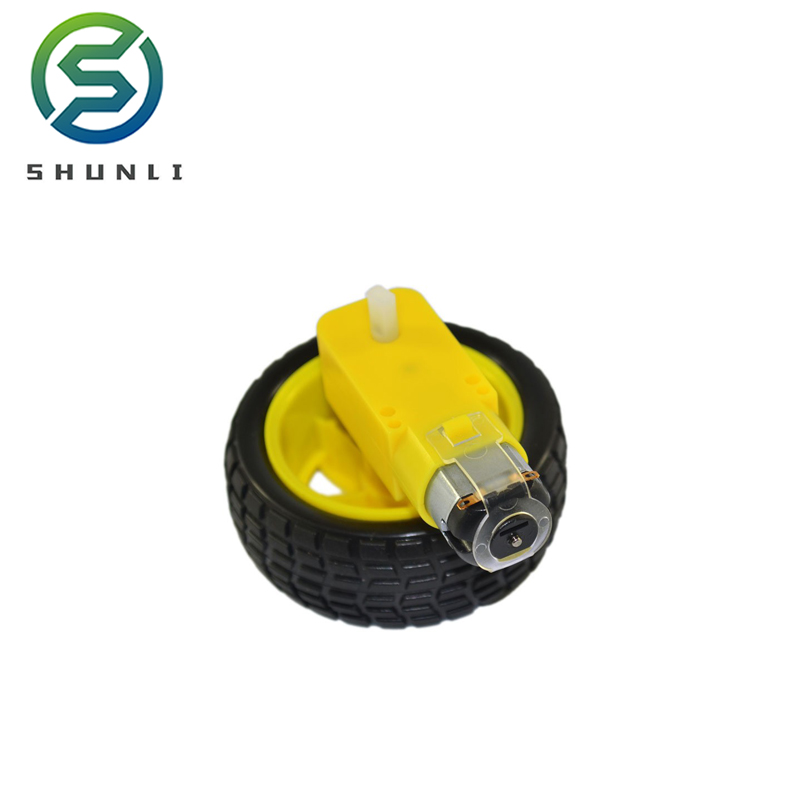

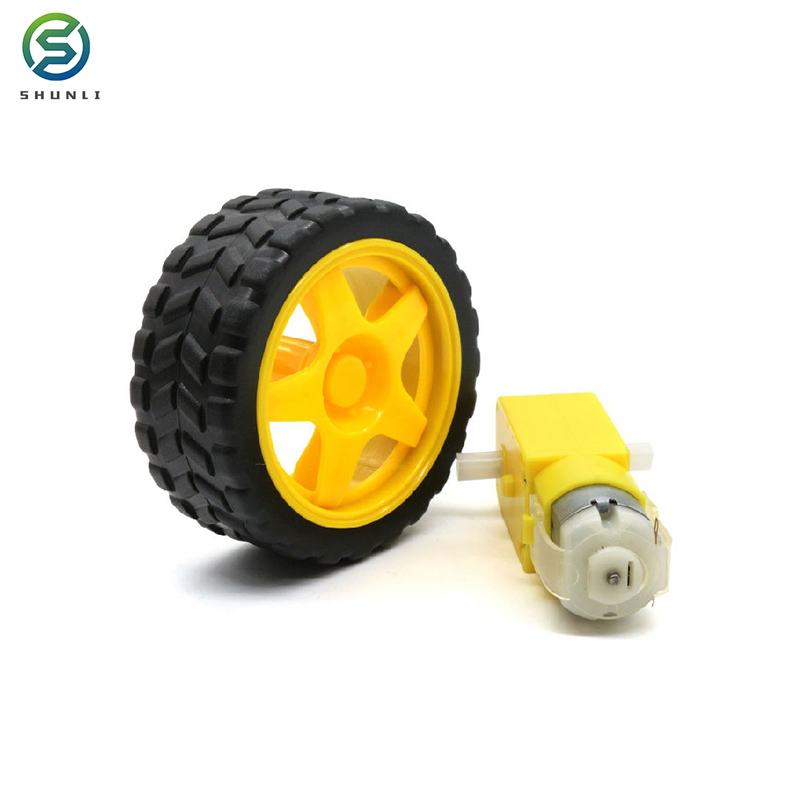

This compact yellow DC gear motor set is designed for toy cars, smart robot chassis, DIY electronics projects, and educational science modeling applications.
What are the key technical parameters for the SGP01S series?
The SGP01S features customizable torque levels, with rated speeds ranging from 50 to 100 rpm under no-load conditions. The stall torque reaches up to 4.003 Kg.m (0.393 N.m) with maximum current draw up to 2.15A.
Are the gears inside the motor made of metal or plastic?
This motor employs high-quality, lightweight plastic gears, which provide a reliable balance between durability and cost-efficiency for small hobbyist robotic applications.
How can I control the speed of the motor?
You can regulate the motor speed by adjusting the input voltage within the specified 3-12V range or by using a compatible external PWM (Pulse Width Modulation) motor controller.
