Syncdrive Motor
1 / 5

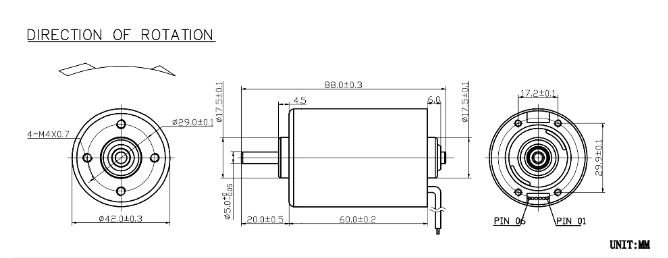

BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |

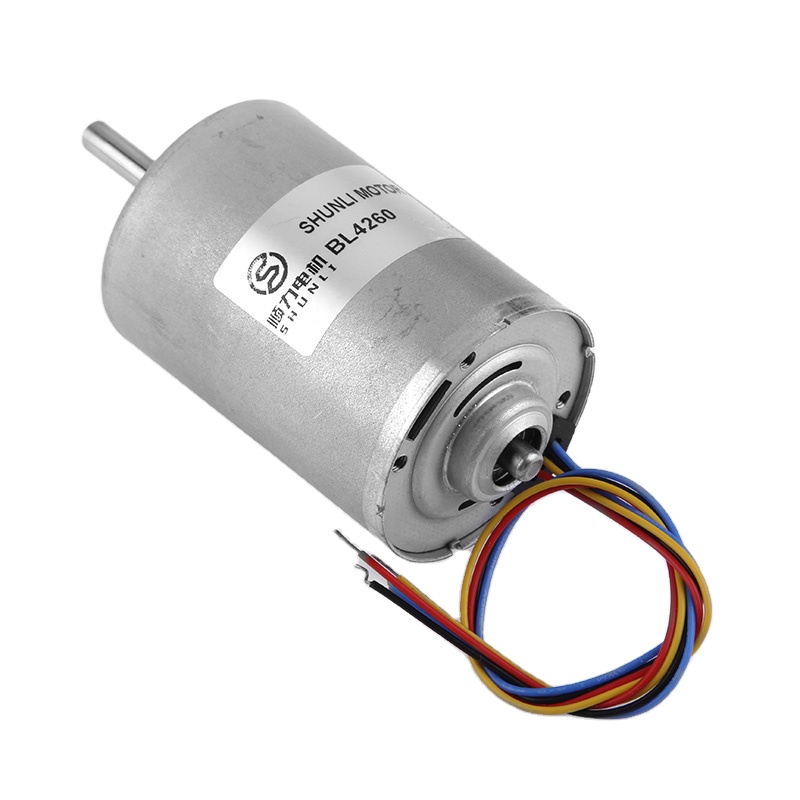

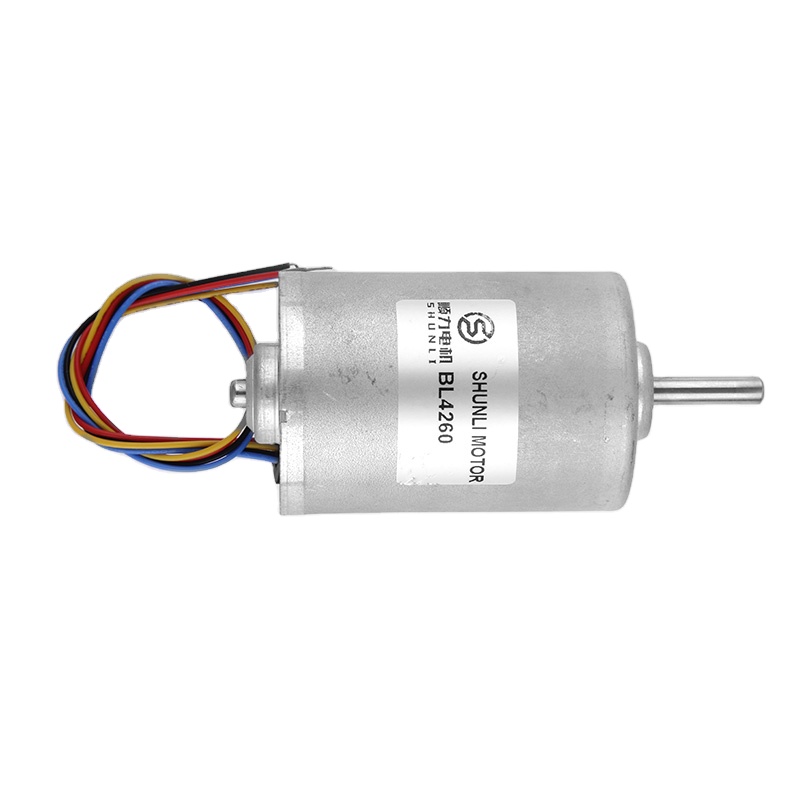

A1: This brushless DC motor supports input voltages of 12V, 18V, and 24V, making it highly versatile for various applications.
A2: The motor is designed to operate at reference speeds of 1500 RPM, 3000 RPM, and 4000 RPM depending on your configuration.
A3: It is widely used in washing machines, RC planes, DIY technical tools, fans, robots, pumps, and other electronic devices.
A4: The motor features a 5-pin configuration: Pin 1 is VCC, Pin 2 is FG, Pin 3 is CW/CCW (direction control), Pin 4 is GND, and Pin 5 is PWM (speed control).
A5: Yes, customized specifications for the motor are available. Please feel free to reach out with your requirements.
A6: The integrated termination pins allow for active speed regulation via PWM (Pulse Width Modulation) and rotational direction switching using the CW/CCW pin.
