Syncdrive Motor
1 / 5
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |

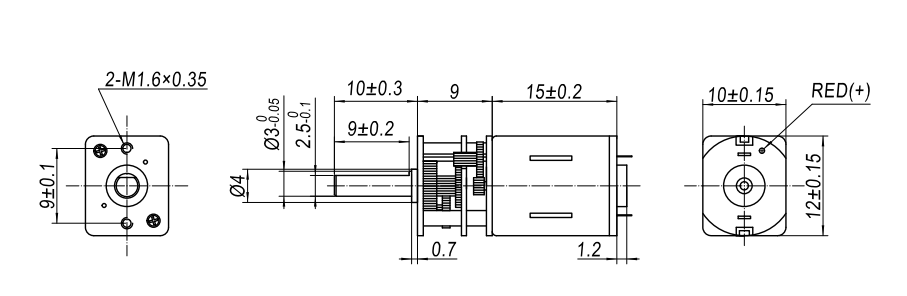

| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |

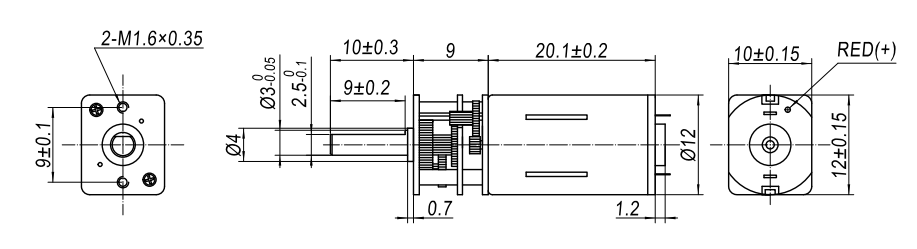

| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|

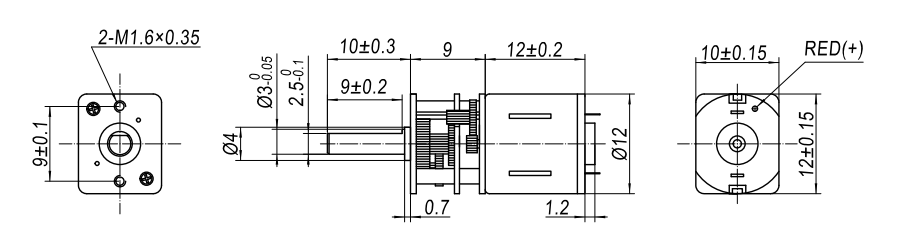

| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a factory specializing in producing motors for more than 14 years, with three manufacturing bases. Our professional R&D team, mature management, and experienced engineering and sales personnel are committed to providing you with an excellent sourcing experience.
To ensure high standards of quality, every step of the process—from receiving materials to final shipment—is carefully and strictly checked. Reliable quality control is the absolute foundation of our operations.
