Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

Product Showcase

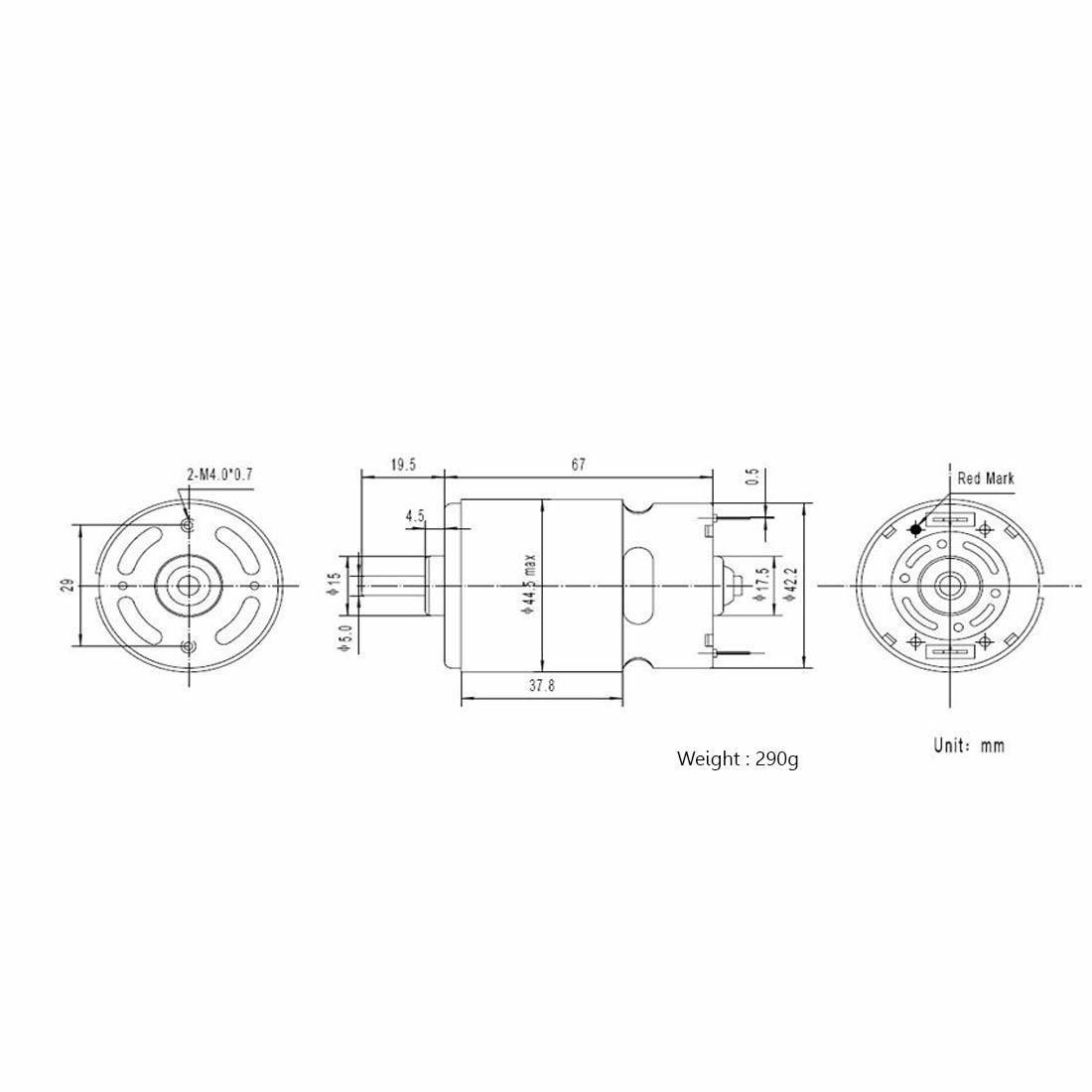

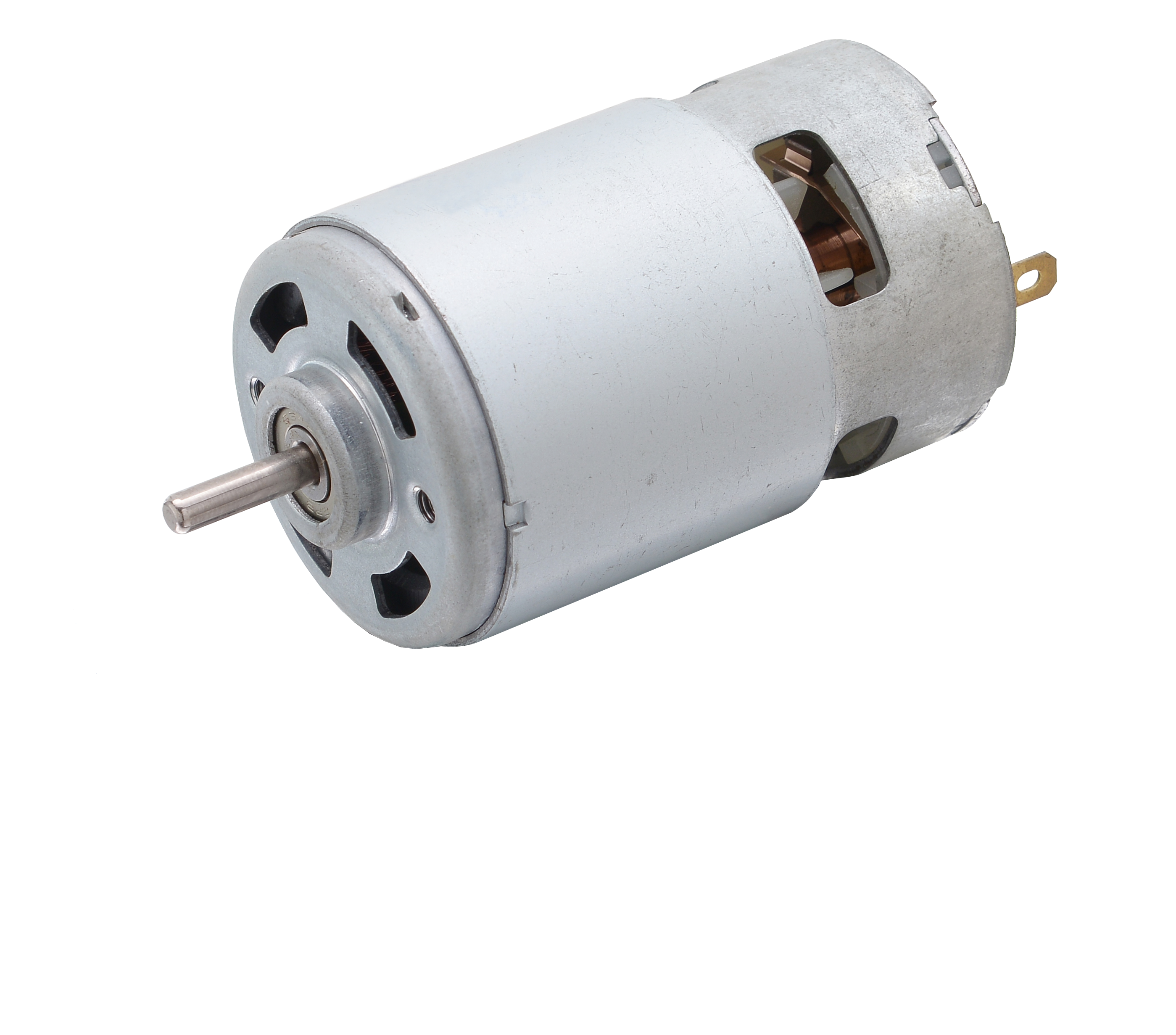

Motor Dimension Specification
Product Model 7 Series
Motor Diameter 7 Series: 420.3 mm Add protecting the magnetic ring: 45 mm
Motor Length 755 motor: 59 mm
775 motor: 66 mm
Motor Voltage 7.2-48VDC
Motor Speed 3000-20000RPM
Motor Shaft Standard 5mm D shaft Motor Shaft Shape And Length Can Be Customized

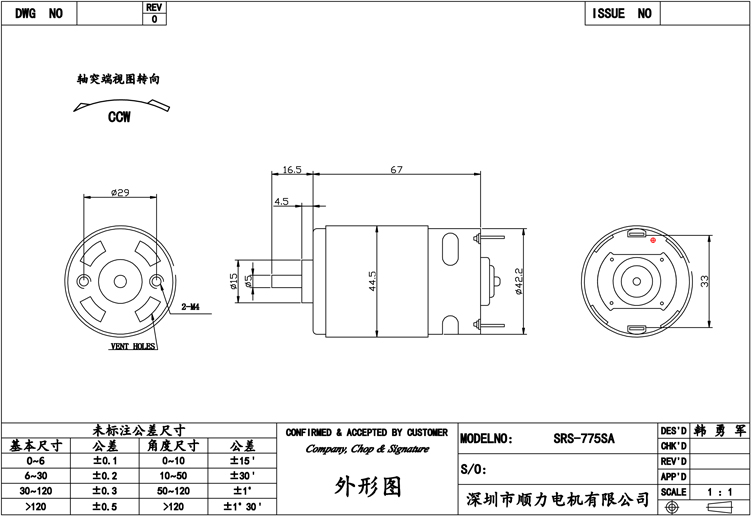

Product Performance Curve

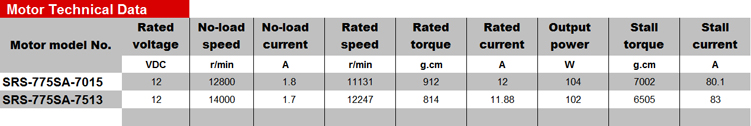

Product Production View
Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4 Detailed View 5 Detailed View 6
FAQ
QAre you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
QWhat is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
QI can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
QDo you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
QHow is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
