Syncdrive Motor
1 / 5
Product Details
Gearbox Technical Data
| Ratio | 3.4K - 5184K |
|---|---|
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||

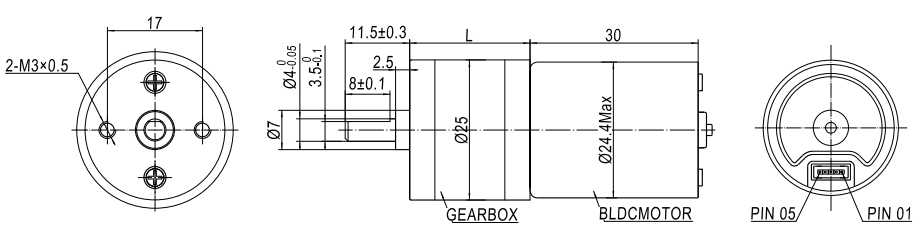

| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |

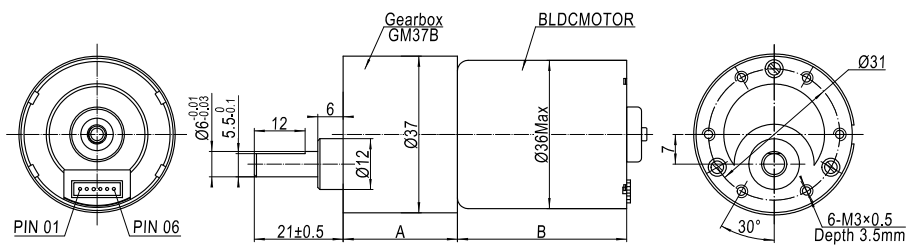

| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |

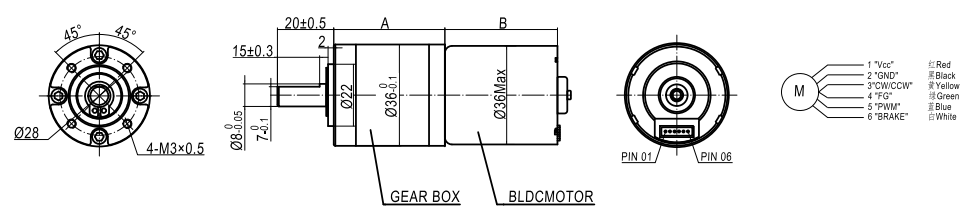

| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |

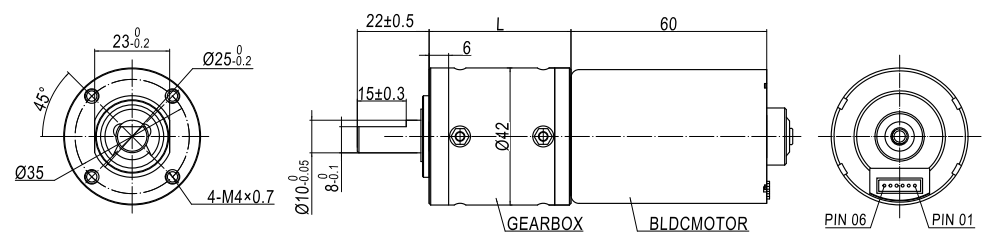

| GMP42MBL4260-325K | 1:245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20 / 200 |
Our factory has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

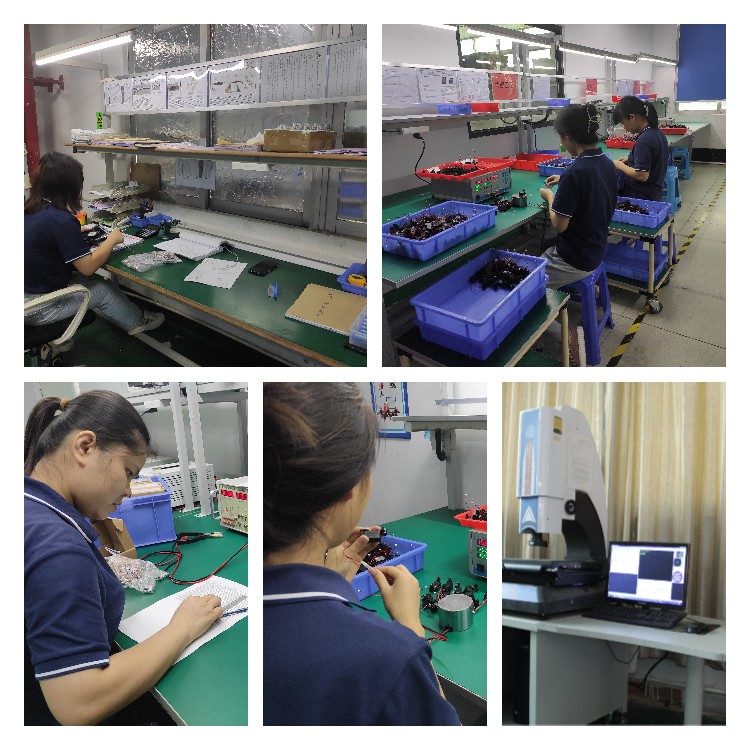

Quality Control
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.
Our Service
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
We can draw up an Online Assurance Order for our new customer, which can be paid online with MasterCard, Visa, etc. Customers can also pay with PayPal or TT, etc.
Yes, we can customize a suitable motor according to our customer's requirements.
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Standard samples will be produced within 2 weeks, while customized samples will be completed and produced within 3 weeks.
