Syncdrive Motor
1 / 5
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
|---|---|
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |

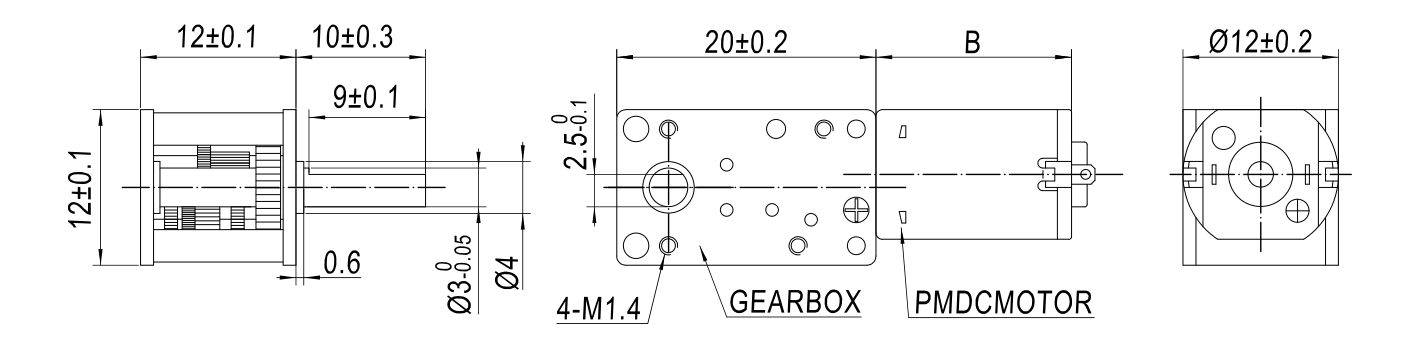

| PMDC MOTOR Model | Length "B"(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |

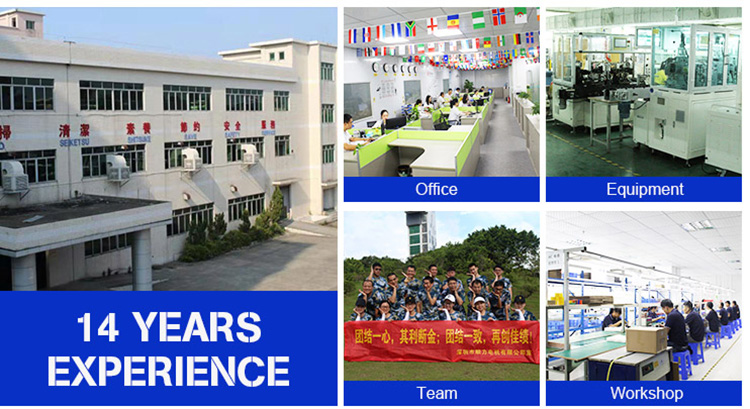

We are a factory specializing in micro DC motor and DC gear motor development and manufacturing for more than 14 years.
We can draw up an Online Assurance Order for our new customers, which allows payment online with Master Card, Visa, etc. Customers can also pay via PayPal, TT, and other methods.
Yes, we can customize a suitable motor configuration according to our customer's specific requirements.
Yes, we have CE, FCC, ISO, and other relevant certifications. If you have other specific certificate requirements, we can apply for them for you.

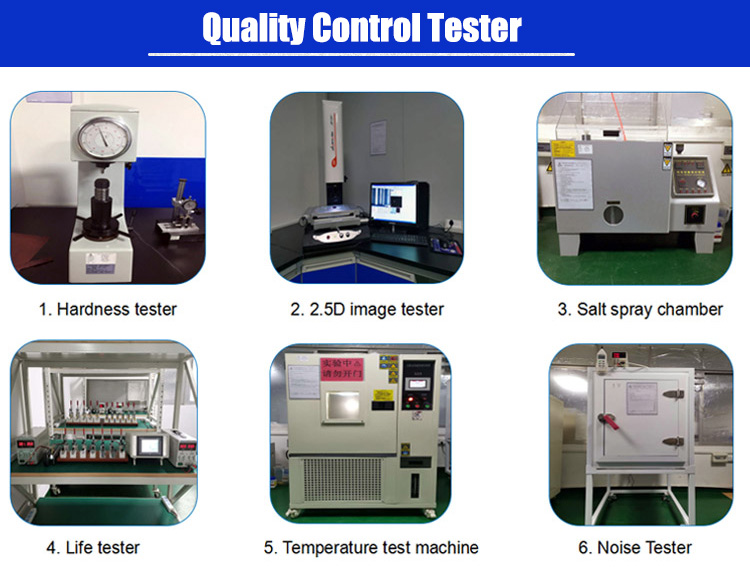

We have professional checking staff on every production line process. Once the motor is assembled, we use professional testing machines, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers, to conduct comprehensive quality checks.
Our motors are widely implemented in automobiles, communications equipment, smart home systems, medical equipment, intelligent security devices, household appliances, commercial kitchen equipment, machinery, and various high-end electronic transmission structures.
